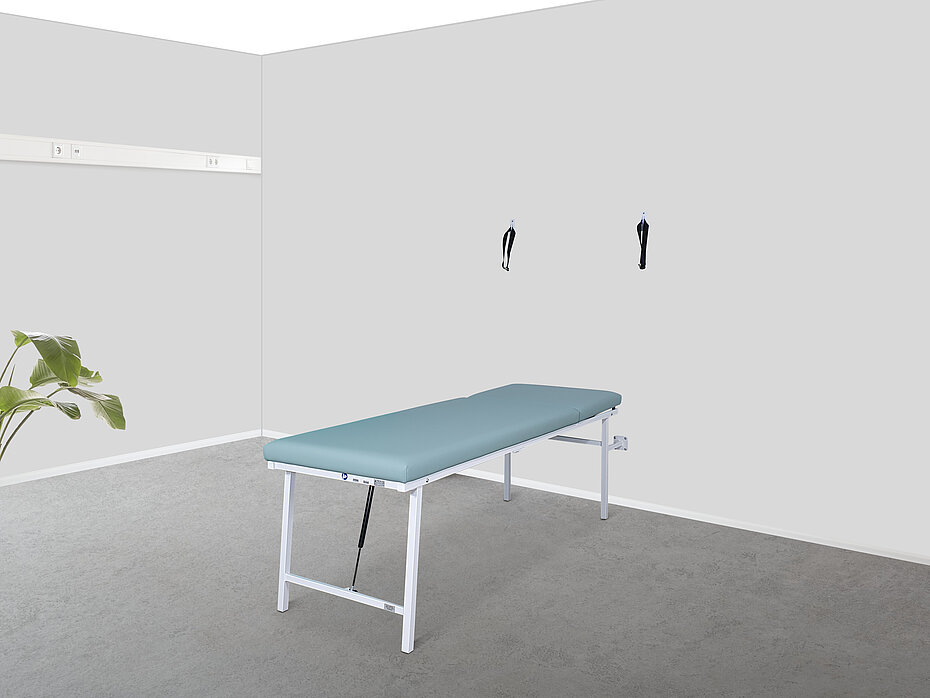

Underpart of square tube 30x30x2 mm, chromed. In functional state the table stands on the feet. In this way the table has a high rugged design (no application of load to the wall).

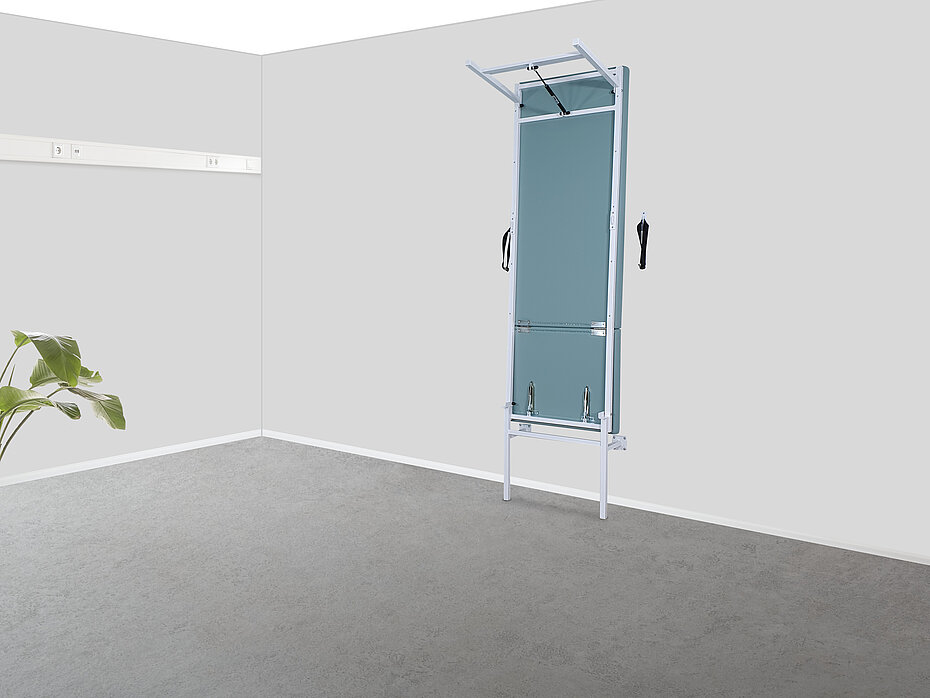

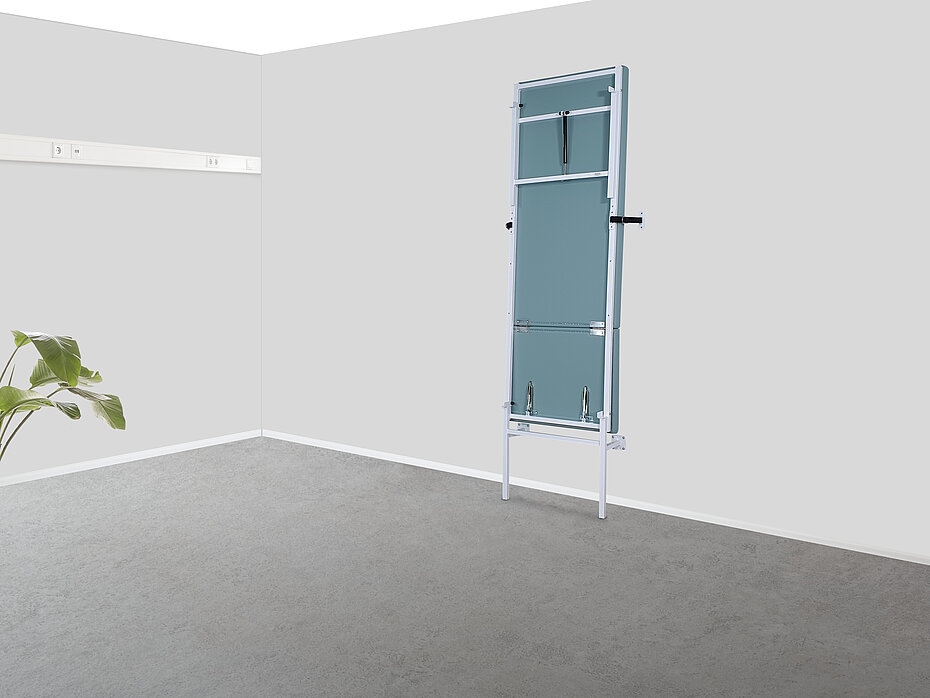

Turned upwards to the wall the table stands on the behind foot-rack. Then it is the bearing element. The foot-rack has to be fixed by screws, additional at wall and floor.
Note: The mounting of Mod. 126-01 must be at a load-bearing, solid wall.

Basic equipment of Mod. 126-01:

Lying surface 2-sectioned:

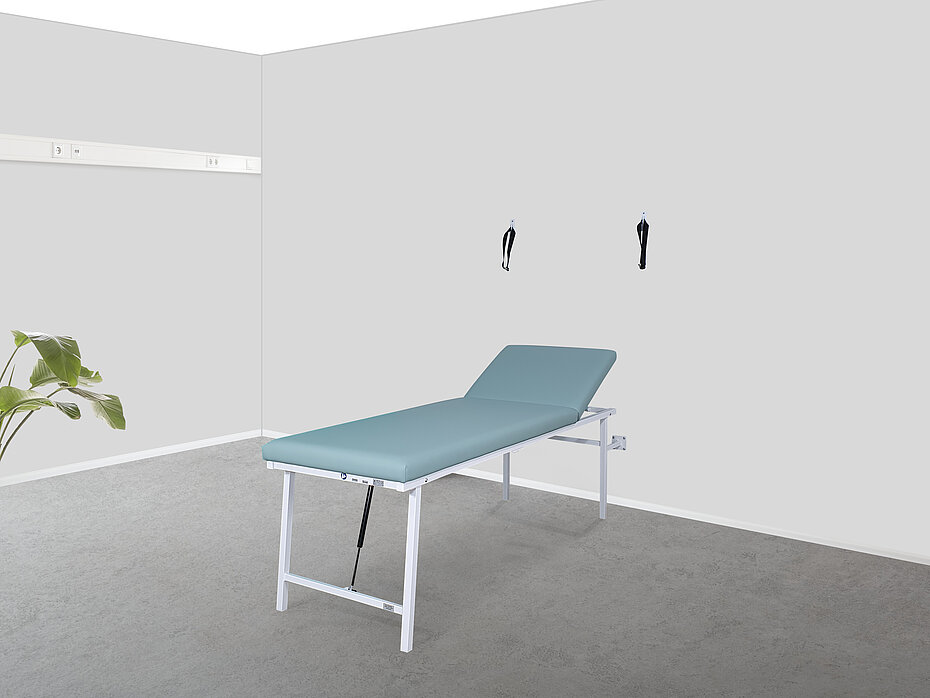

  • Head part upwards adjustable (+30°) by 2 metal rachets, safety and for longevity. Length of head part: 550 mm
  • Foot part fixed. Length: 1.400 mm.
  • Turnable to the wall transverse over end of head part (The turning out of the feet of foot part and the swinging downwards of complete table is manual.
  • Fixation of the turned out feet by knurled screw)
  • With 2 wall holders including safety belt (for fixation of the upwards turned table)
  • Standard-Thickness of upholstery: 8 cm


Load capacity:

200 kg (max. weight of patient), only for solid walls.

Measures:
L: 1.950 mm, W: 650 mm, H: 650 mm,

Weight of the table:
33 kg

Important measures for mounting of the table:

  • Necessary height of room: 2.420 mm
  • Length of operability table: 2.050 mm (measured including the behind foot-rack)
  • Distance upholstery head part to the wall: 90 mm
  • Place of the 2 wall holders approx. : H: 1.430 mm

Turning tables

Model 125-01

Turnable to the wall over alongside of the table upwards or downwards

Measures:
L: 1.950 mm, W: 650 mm, H: 700 mm
Load capacity: 200 kg (max. weight of patient), only for solid walls.
