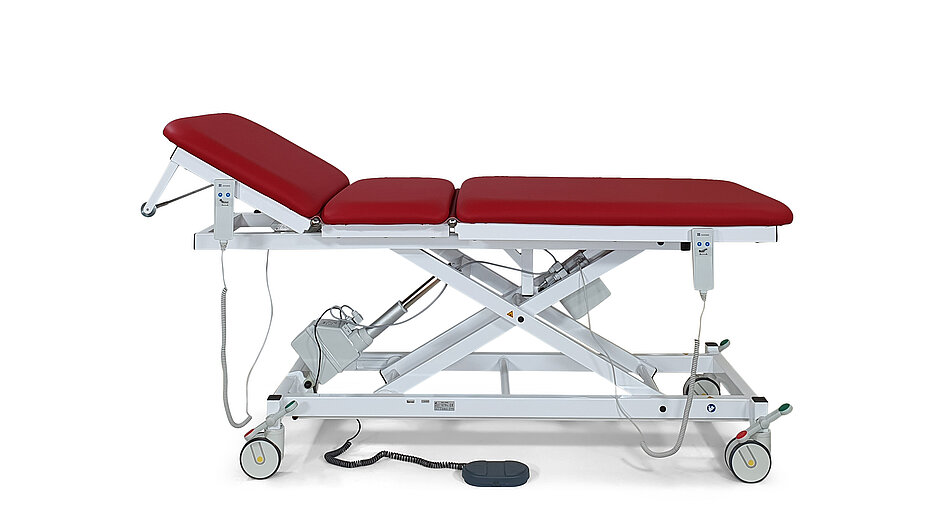

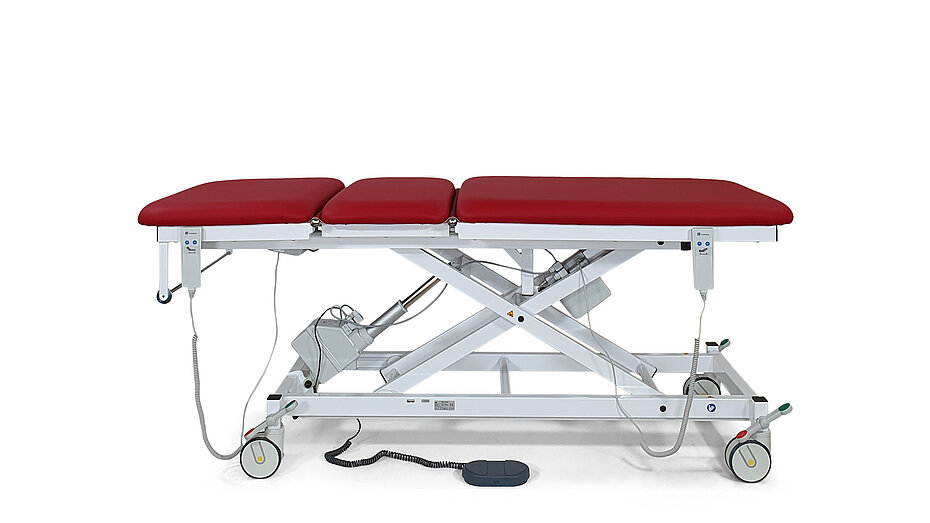

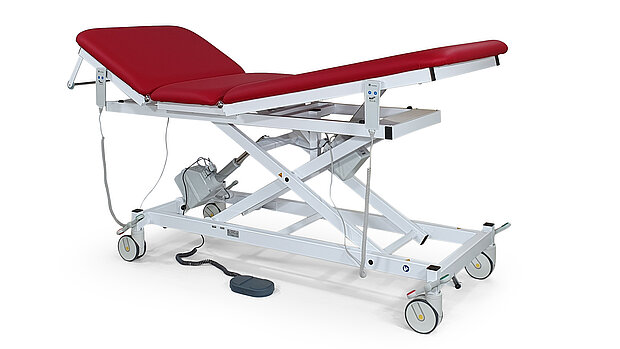

3-sectioned heavy-weight table with height adjustment
Model 7255-..E
Model 7255-00E (width: 800 mm) white powder coated (RAL 9010)
Model 7255-03E (width: 800 mm) white aluminium powder coated (RAL 9006)
Model 7255-04E (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
Head part and foot part adjustable by electromotive drive,
easy positioning of adipose patient possible - Table is not movable
- Height adjustment by electromotive drive
- Dewert-hygiene-equipment
Technical data:
- Electromotive height adjustment: 540 - 890 mm in 36 sec.
- Length overall: 1990 mm
- Width overall: 800 mm
- Load capacity: 350 kg (max. weight of patient)
Elektronical height adjustment:
- Electronical height adjustment by special heavy load AC-motor (540 mm - 890 mm)
- Electromotive drive control by foot switch (option: hand switch)
- Constant adjustment speed even in case of high load
Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards (motor for height adjustment), automatic declutch in case of resistance
Technology:
upholstery colour: 64-708 cherry
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable widened twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 350 kg
Tested with fourfold static load (1400 kg)
Upholstery:
Lying surface:
3-sectioned:

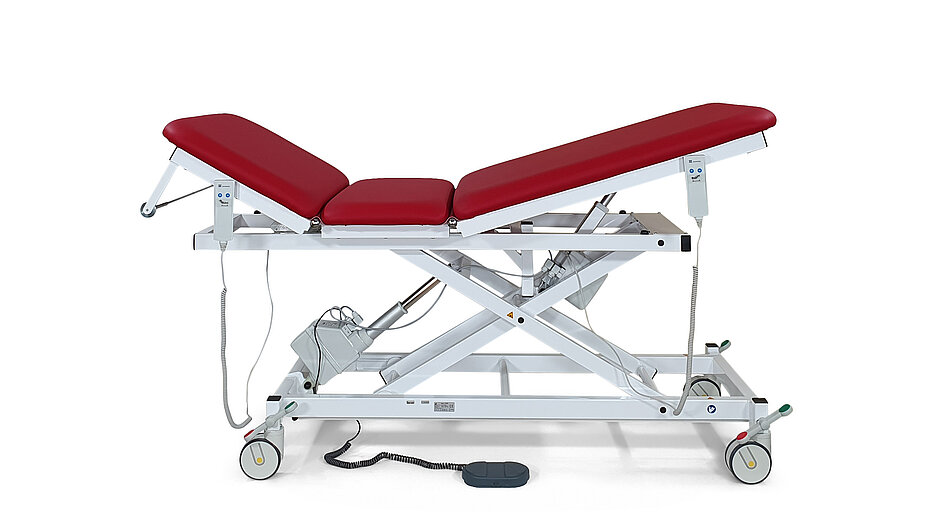

- Head part stepless adjustable (0° - +38°) by electromotive drive, length head part: 550 mm
- Middle part: fixed, length middle part: 410 mm

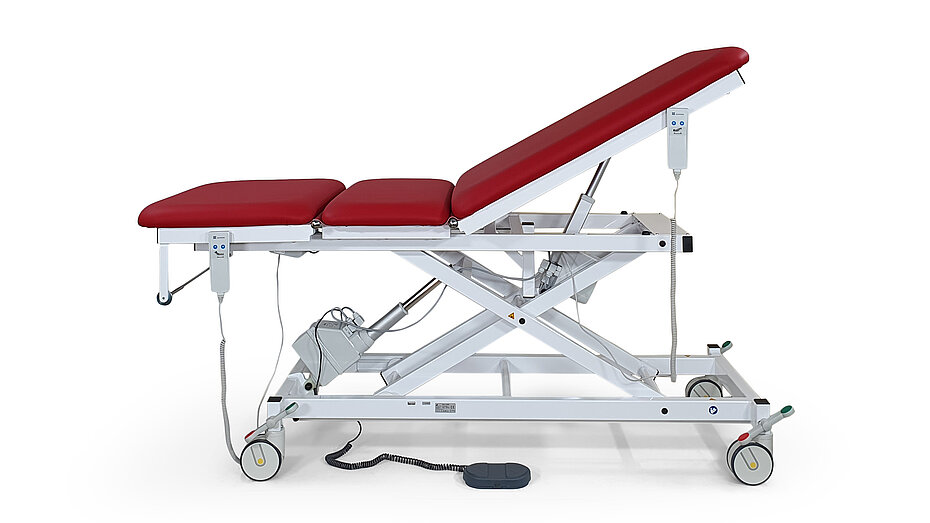

- Foot part stepless adjustable (0° - +30°) by electromotive drive, length foot part: 1030 mm
- Adjustment of upholstery by double hand switch
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of pure foam in volume weight of 75 and comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option

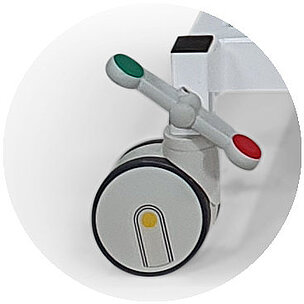

Movable on heavy-weight twin castors
with central lock, Ø 125 mm
- Movable on heavy-weight twin castors with central lock, Ø 125 mm (Art. no. 1189)
Foot switch (low voltage)
Hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
- 1 foot switch (low voltage) (Art. no. 1910E)
- 1 hand switch (low voltage) (Art. no. 1920E)
- 1 fixation for foot switch, mounted at under frame (Art. no. 1940E)
Nose opening
Art. no. 1620
Upholstery part to close
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder, mounted under head
part (not protruding), for with of lying
surface 800 mm
Paper roll holder, mounted at foot part
(not protruding), for width of lying surface
800 mm
- Paper roll holder, mounted under head part (not protruding), for width 800 mm (Art. no. 1280K)
- Paper roll holder, mounted under foot part (not protruding), for width 800 mm (Art. no. 1280F)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 800 mm
- 4 wall protection bumpers Ø 150 mm, including mounting, for width 800 mm (Art. no. 1176)

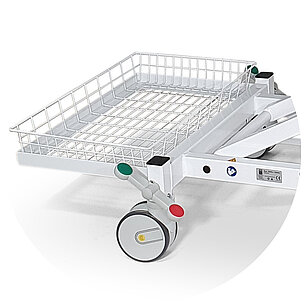

Storage basket with mounting,
measures:
L. 530 x W. 370 x H. 80 mm
- Storage basket with mounting,
measures: L. 530 x W. 370 x H. 80 mm (Art. no. 1850)
