Versatile table with hydraulic height adjustment
Model 1030-../H

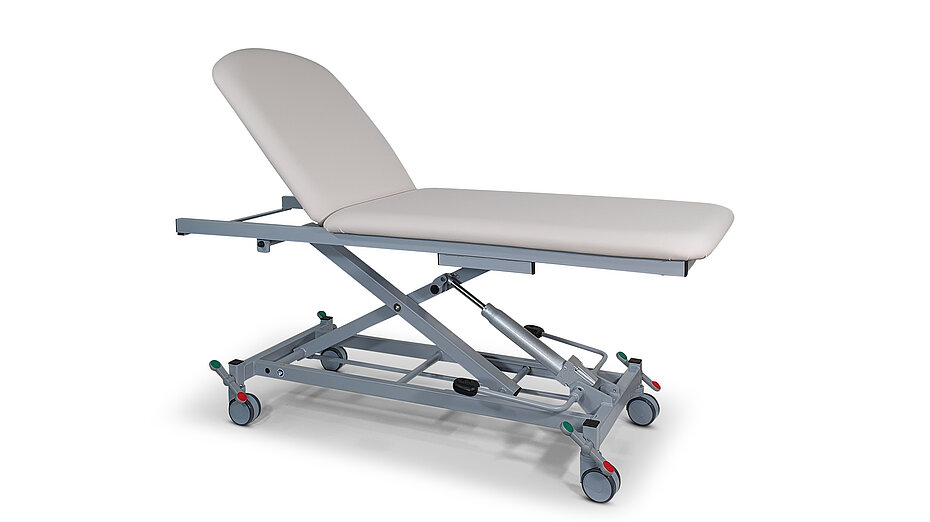

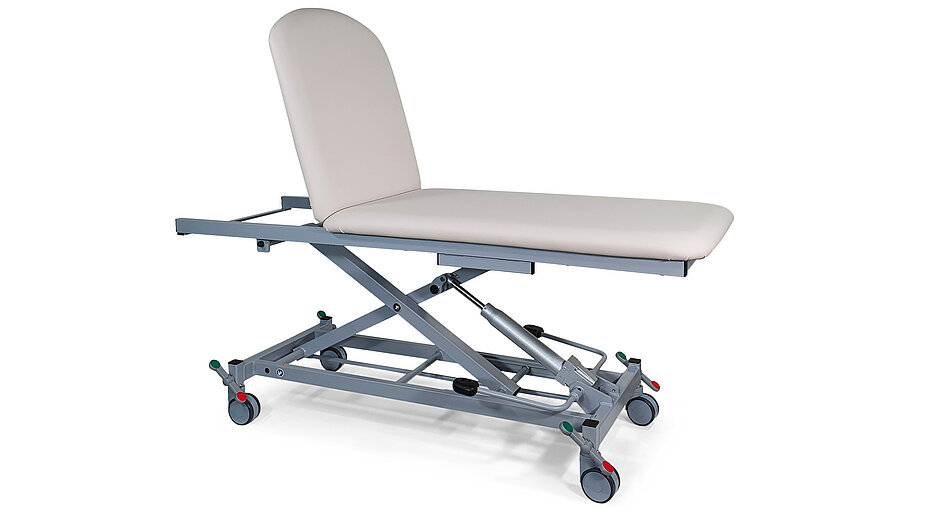

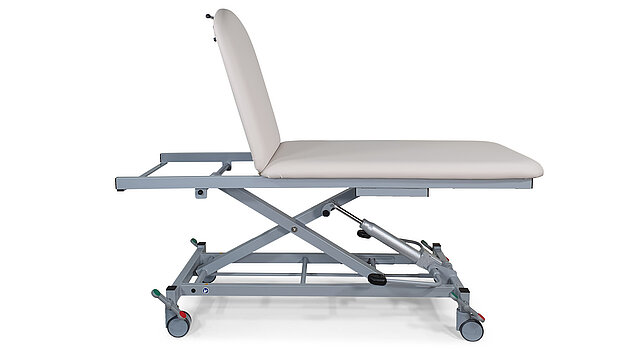

Model 1030-04/H ( upholstery colour 64-703 pearl) with option: Movable on twin castors with central lock (046)
Model 1030-00/H white powder coated (RAL 9010)
Model 1030-03/H white aluminium powder coated (RAL 9006)
Model 1030-04/H grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Head part stepless adjustable (0° to 75°) by gas spring (sitting position)
- The table is not movable
- Manual foot operated height adjustment by a hydraulic pump
- Pedals for foot-controlled height positioning on both sides of the table
Technical data:
- Manual foot operated height adjustment : 510 to 960 mm
- Length overall: 1950 mm
- Width overall: 700 mm
- Load capacity: 225 kg
Hydraulic height adjustment:
- Manual foot operated height adjustment from 510 to 960 mm by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
Upholstery colour: 64-703 pearl
- Very stable single frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 225 kg
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless adjustable (0° to 75°) by gas spring (sitting position), length head part: 750 mm
- Length foot part: 1.200 mm, foot part: fixed
Upholstery:
- Thickness of upholstery: 65 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 040N)
- Movable on twin castors, Ø100 mm with central lock, basic height + 20 mm (art. no. 046)
- Movable on comfort twin castors, Ø125 mm with central lock, basic height + 50 mm (art. no. B1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 045N)
Paper roll holder, mounted under head
part (not protruding),
for width 700 mm / 800 mm
Paper roll holder, mounted at foot part
(protruding: 70 mm),
for width 700 mm / 800 mm
- Paper roll holder, mounted under head part, for width 700 mm / 800 mm (art. no. 010K) / (art. no. 015K)
- Paper roll holder, mounted at foot part, for width 700 mm / 800 mm (art. no. 010K/F) / (art. no. 015K/F)
- Width of lying surface: 800 mm (art. no. 006)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. B1770)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. B1780)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. B1772)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. B1782)
2 side guards foldable (lateral lowerable)
- 2 side guards lateral lowerable, RAL 9006 powder coated, made of steel tube, length: 820 mm, including upholstery medium-soft (art. no. 1008)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 700 mm / 800 mm
- 4 wall protection bumpers Ø 150 mm, including mounting, for width 700 mm / 800 mm (art. no. B1175) / (art. no. B1176)
