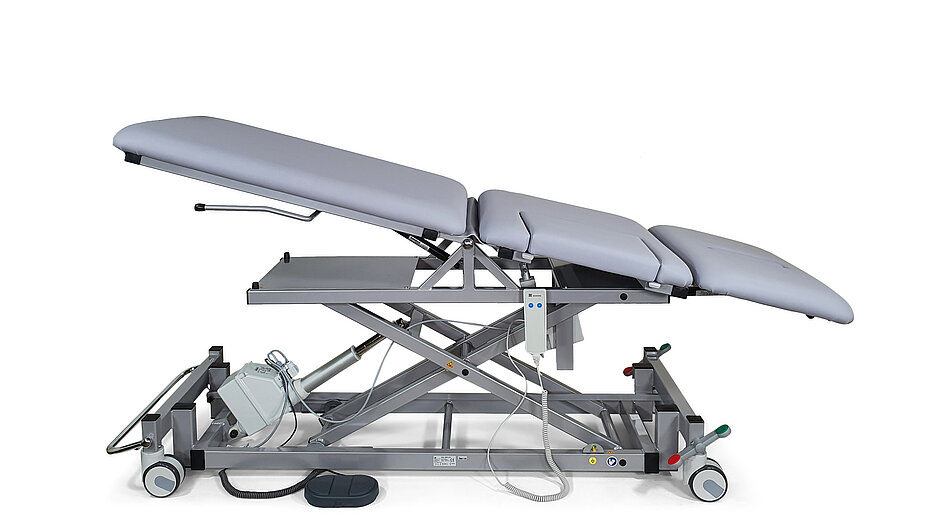

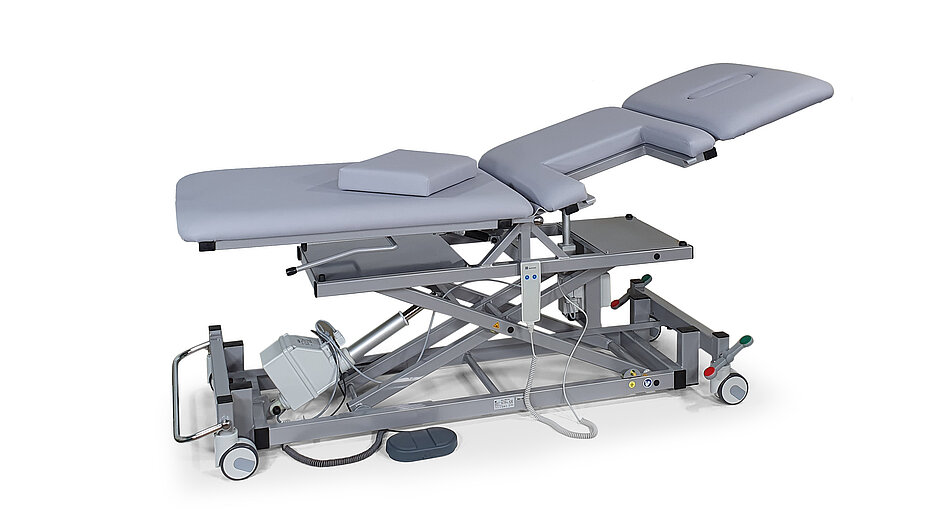

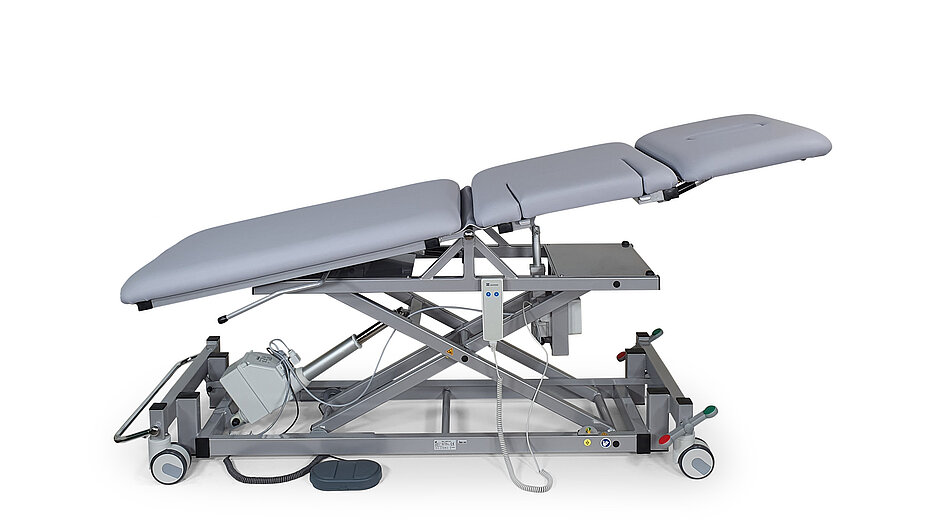

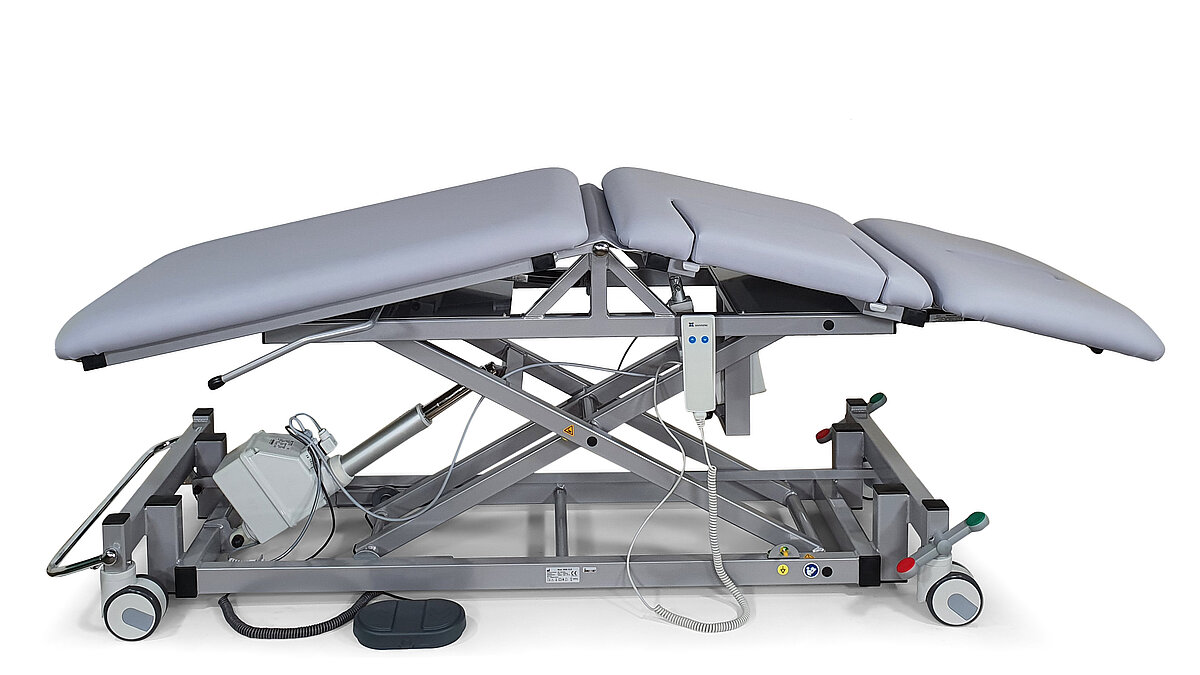

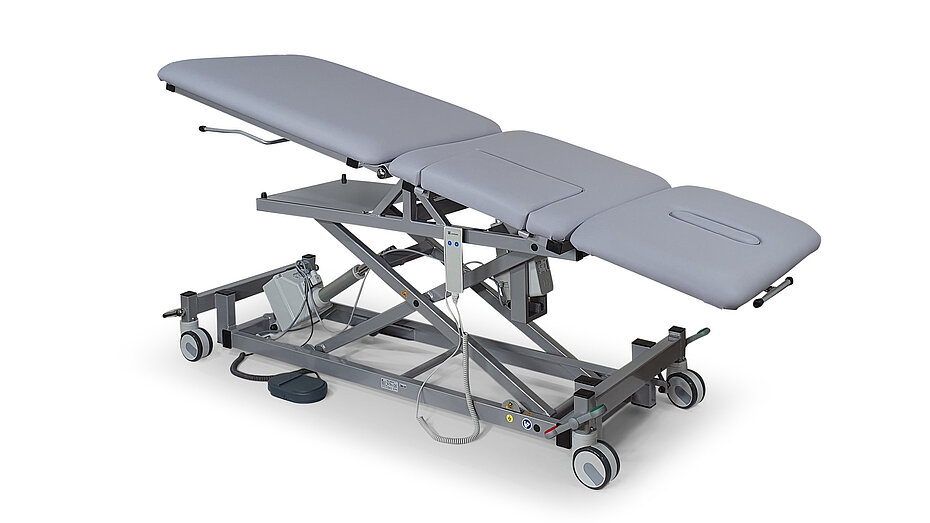

3-sectioned table for echocardiography
Model 2690-..XLE

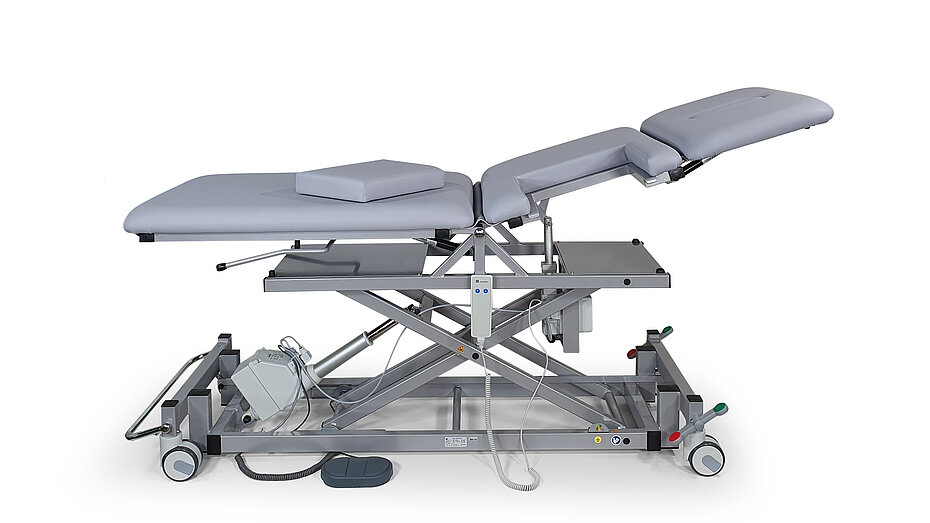

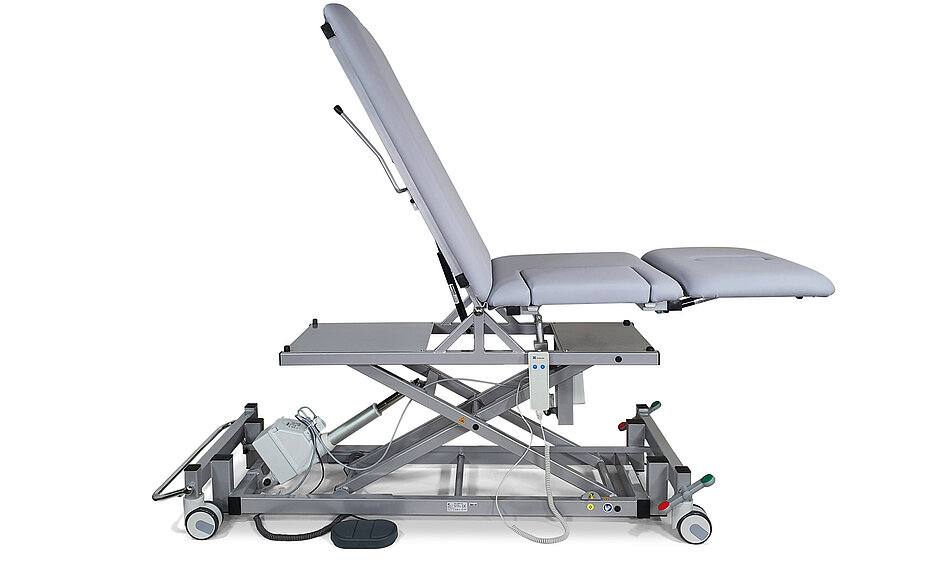

Model 2690-04XLE (upholstery colour 64-175 silver grey) with options:
Movable on twin castors with central lock and lowered under frame (1187), footbar for central lock (1199)
2690-00XLE (width: 700 mm) white powder coated (RAL 9010)
2690-03XLE (width: 700 mm) white aluminium powder coated (RAL 9006)
2690-04XLE (width: 700 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Middle part stepless adjustable by electromotive drive
- Cut-out in the middle part for echocardiography with upholstery part to close
- Possibilities of positioning the surface parts: Roof shape, Trendelenburg, reverse Trendelenburg
- Height adjustment by electromotive drive
- Plug connector for potential equalization in acc. to DIN 42801
- Movable on 4 castors ∅ 75 mm, each with lock
- Dewert-hygiene-equipment
Technical data:
- Electronical height adjustment 630 mm - 1070 mm in 22 sec.
- Electronical adjustment of middle part up- (+20°) and downwards (-10°)
- Length overall: 1950 mm
- Width overall: 700 mm
- Load capacity: 220 kg (patient in lying position)
Electronical height adjustment:
- Electronical height adjustment (630 mm – 1070 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by foot switch (option: hand switch)
- Middle part stepless up- and downwards adjustable by electromotive drive, controlled by hand switch
- Plug connector for potential equalization in acc. to DIN 42801
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
Technology:
upholstery colour: 64-175 silver grey
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Easy hygiene because of an open construction
- Load capacity: 220 kg (patient in lying position)
Upholstery:
Lying surface:
3-sectioned:
- Head part stepless up- (+ 45°) and downwards (-30°) adjustable by gas spring
- Length head part: 400 mm
- Head part with nose opening and upholstery part to close
- Middle part (length: 580 mm) stepless up- (+15°) and downwards (-15°) adjustable by electromotive drive
- Cut-out in the middle part with upholstery part to close:
Length: 300 mm x Width: 250 mm
Place of cut-out left side, patient lying in supine position - Foot part stepless up- (+ 62°) and downwards (-12°) adjustable by gas spring
- Length foot part: 970 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Hinge lid made of identical upholstery covering
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Without standard mobility

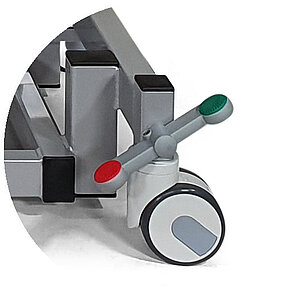

Movable on twin castors with central lock,
Ø 100 mm, lower underframe

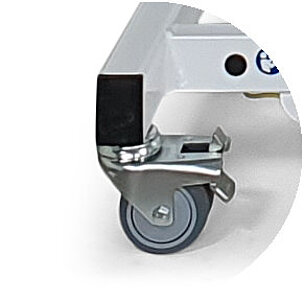

- Without standard mobility (Movable on 4 castors ∅ 75 mm, each with lock) (Art. no. 1182)
- Art. no. 1187 Movable on twin castors with central lock, Ø 100 mm, lower underframe, table height 540 mm – 980 mm
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
Without nose opening and upholstery part to close
- Without nose opening and upholstery part to close (Art. no. 1615-EF)
Paper roll holder, mounted under head part (not protruding), for width 700 mm
Paper roll holder, mounted at foot part
(protruding: 70 mm),
for width 700 mm
- Paper roll holder, mounted under head part (not protruding), for width 700 mm (art. no. 1270F/K)
- Paper roll holder, mounted at foot part, for width 700 mm (art. no. 1270F)

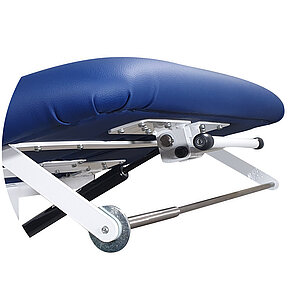

- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. 1772)
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (Art. no. 1005)
4 wall protection bumpers Ø 150 mm,
including mounting, for width 700 mm
- 4 wall protection bumpers Ø 150 mm, including mounting, for width 700 mm (Art. no. 1175)
1 piece of side rail, length: 350 mm
- 1 piece of side rail, length: 350 mm (Art. no. 1410)
