Therapy table with 3 upholstery segments
Model 2820-..XL

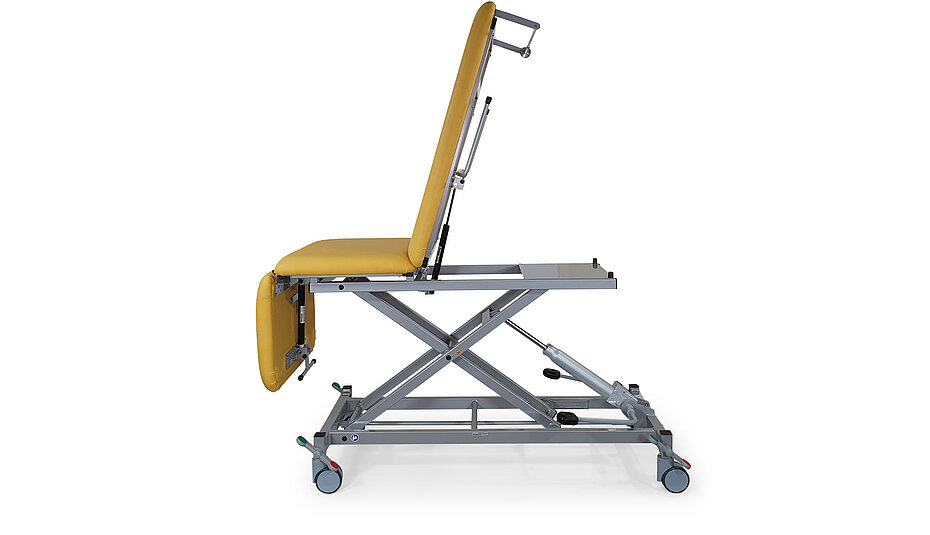

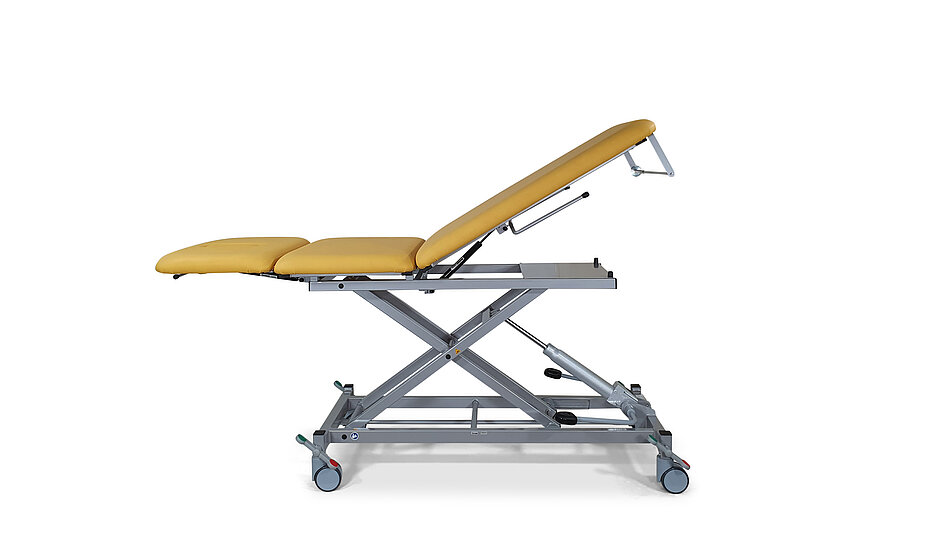

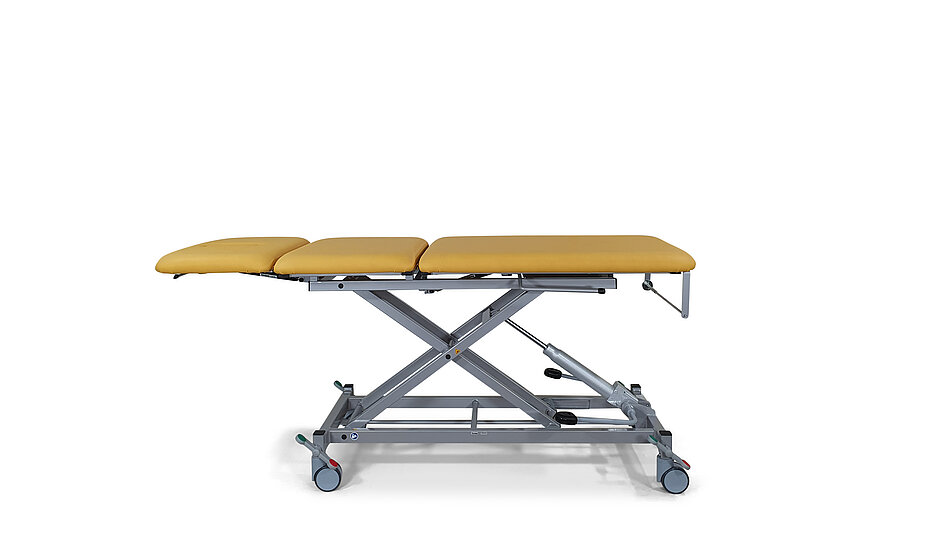

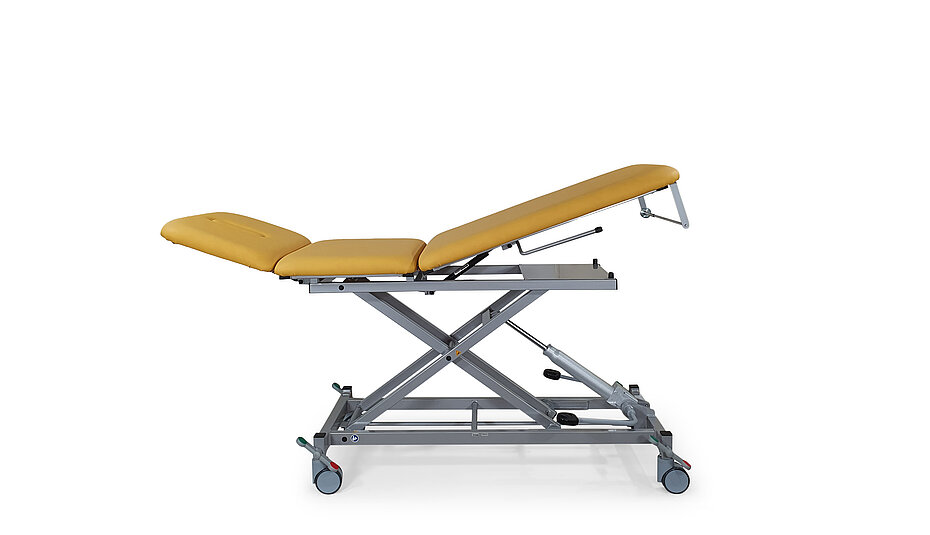

Table yellow: Model 2820-04XL/H (upholstery colour 64-713 corn) with options:
Movable on twin castors with central lock (046), paper roll holder (010F)

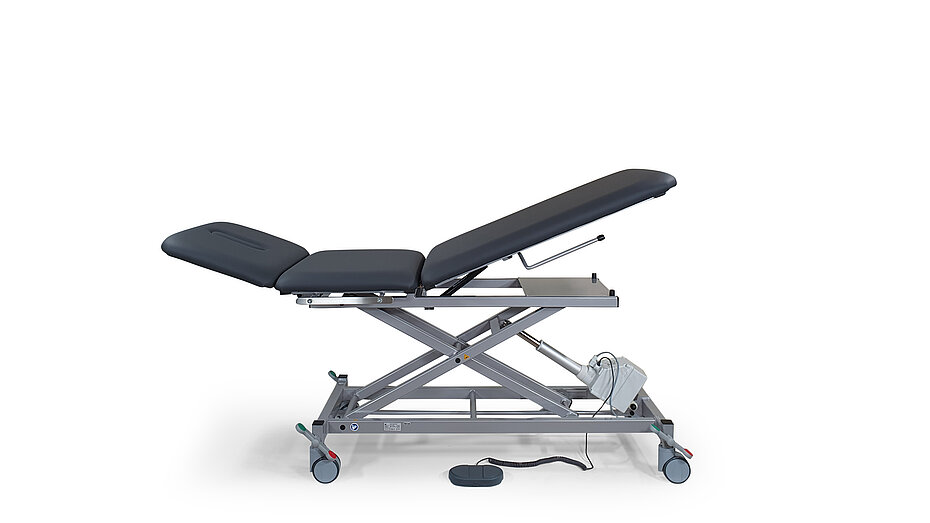

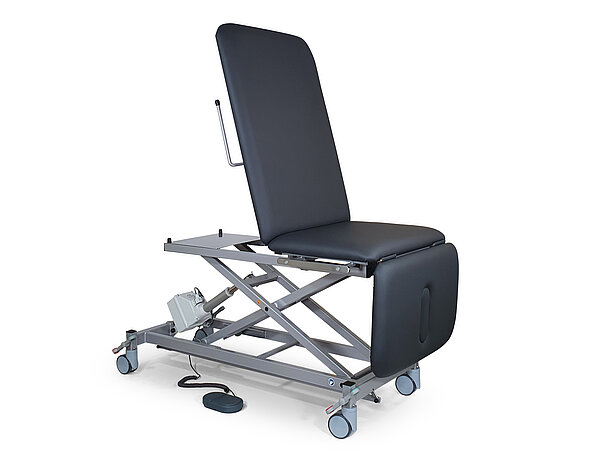

Table black: Model 2820-04XLE (upholstery colour 64-716 black) with options:
Movable on twin castors with central lock (046), side rail (B1410), without hand switch, foot switch
2820-00XLE and 2820-00XL/H (width: 700 mm) white powder coated (RAL 9010)
2820-03XLE and 2820-03XL/H (width: 700 mm) white aluminium powder coated (RAL 9006)
2820-04XLE and 2820-04XL/H (width: 700 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Head part can be hinged vertical
- Foot part stepless adjustable (+80°) to sitting position
- Table is not movable
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o Electronical height adjustment (model 2820-..XL): 510 mm –
950 mm in 22 sec.
o Manual hydraulic height adjustment (model 2820-..XL/H):
540 mm – 960 mm - Length overall: min. 1600 mm – max. 2000 mm
- Width overall: 700 mm
- Load capacity: 250 kg (max. weight of patient)
Height adjustment optionally:
Movable on twin castors with central lock (046), side rail (B1410), without hand switch, foot switch;
upholstery colour: 64-716 black
- Electronical height adjustment (510 mm – 950 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
Model 2820-04XL/H with options:
Movable on twin castors with central lock (046), paper roll holder (010F);
upholstery colour: 64-713 corn
- Manual foot operated height adjustment (530 mm – 950 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
3-sectioned:

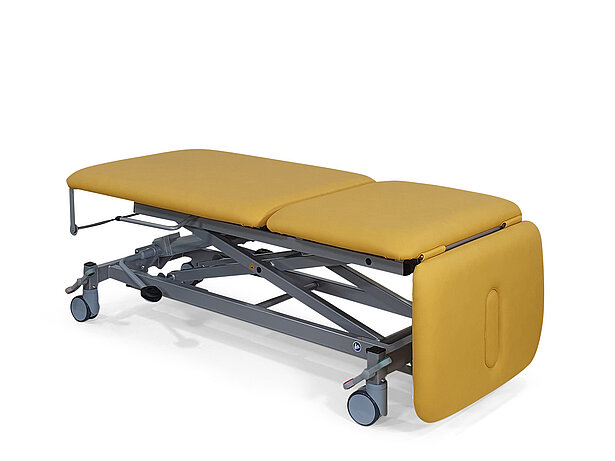

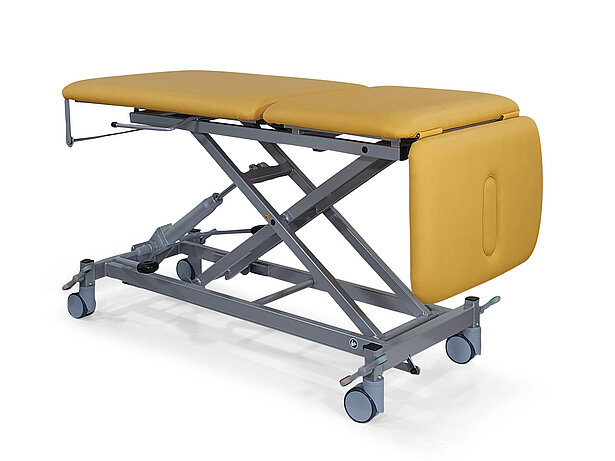

- Head part stepless up- (+30°) and downwards (-90°) adjustable by gas spring (can be hinged vertical)
- Length head part: 450 mm; with nose opening and upholstery part to close
- Middle part: fixed, length middle part: 530 mm
- Foot part stepless adjustable (+80°) to sitting position, length foot part: 1020 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 040N)
- Movable on twin castors, Ø100 mm with central lock, basic height + 20 mm (art. no. 046)
- Movable on comfort twin castors, Ø125 mm with central lock, basic height + 50 mm (art. no. B1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
- 1 foot switch (low voltage) (art. no. 091E)
- 1 hand switch (low voltage) (art. no. 090E)
- Foot switch fixation at the underframe (art. no. 092E)
- Foot switch rail, lateral, on both sides of the table (art. no. 094E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Loss of nose opening and upholstery part to close
- Loss of nose opening and upholstery part to close (Art. no. 1615-EF)
Paper roll holder, mounted under head
part (not protruding),
for width 700 mm
Paper roll holder, mounted at foot part
(not protruding), for width 700 mm
- Paper roll holder, mounted under head part (not protruding), for width 700 mm, not in case of 3-sectioned head part (Art. no. 010K)
- Paper roll holder, mounted at foot part (not protruding), for width 700 mm (Art. no. 010K/F)
- Width of upholstery: 800 mm (Art. no. 007)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (Art. no. B1770)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (Art. no. B1772)

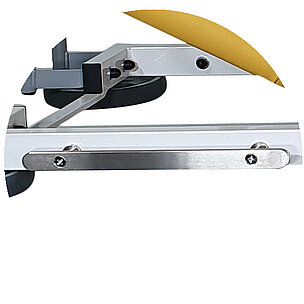

1 piece of side rail,
length: 350 mm
1 attachment clamp for
side rail, suitable for pipe:
Ø 18 mm
1 arm rest for side rail, without
attachment clamp, swivelling and
removeable, additional revolving and
tiltable
- Side rail, length: 350 mm (art. no. B1410)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. B1430)
- 1 arm rest for side rail, without attachment clamp, swivelling and removable, additional revolving and tiltable (Art. no. B1440)
