2-sectioned table with electric lifting column
Model 6050-04E and 6051-04E

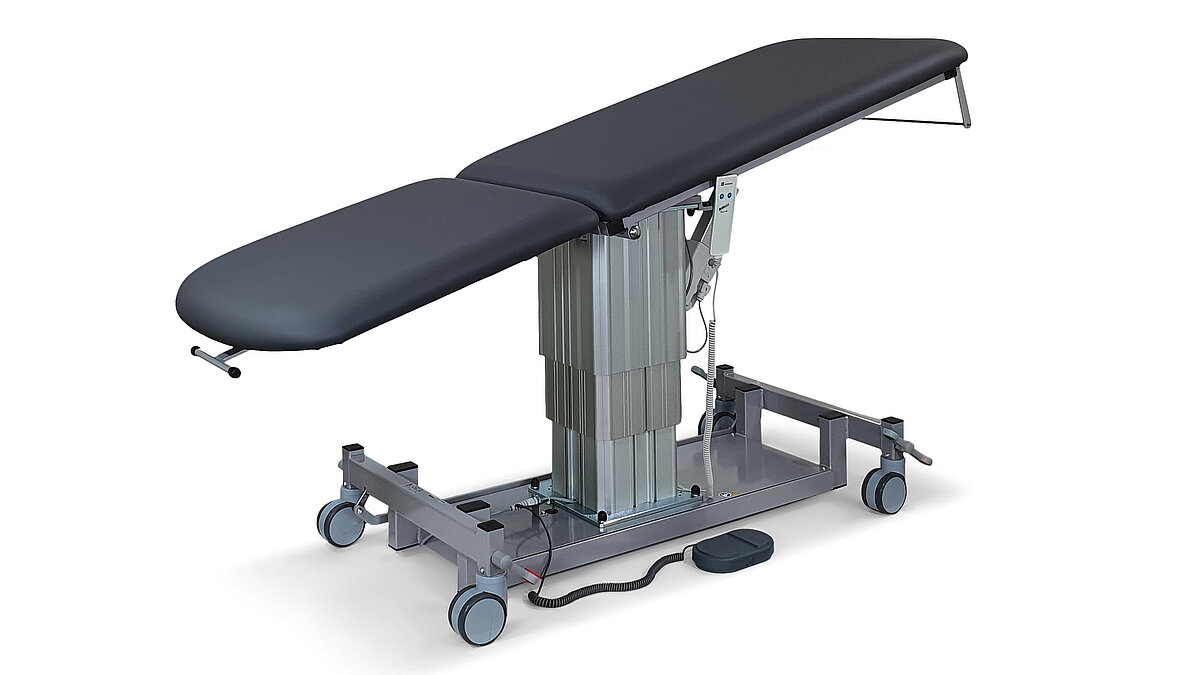

Model 6050-04E (upholstery colour 64-715 anthracite) with options:
Movable on castors with central lock, lowered underframe (1048), paper roll holder (1270K/F)
Lifting column aluminium, silver anodized
Model 6050-03E (width: 700 mm) white aluminium powder coated (RAL 9006)
Model 6051-03E (width: 800 mm) white aluminium powder coated (RAL 9006)
Model 6050-04E (width: 700 mm) grey aluminium powder coated (RAL 9007)
Model 6051-04E (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Table is not movable
- Long head part
- Lying surface is adjustable by electric motor to inclined position (Trendelenburg) till 20°
- The electric lifting column is controlled by 1 foot switch (option: hand switch)
- Dewert-hygiene-equipment
Technical data:
- Electronical height adjustment: 560 mm - 960 mm in 24 sec.
- Lying surface is adjustable by electric motor to inclined position (Trendelenburg) till 20°
- Length overall: 1950 mm
- Width overall:
Model 6050-04E: 700 mm
Model 6051-04E: 800 mm - Load capacity: 220 kg (max. weight of patient)
Electronical height adjustment by lifting column:
- Height adjustment (560 mm - 960 mm) by central positioned electric lifting column, therefore free space under top frame
- The electric lifting column is controlled by 1 foot switch (option: hand switch)
- Constant adjustment speed even in case of high load by integrated AC-motor with a pressure capacity of 3000 N
- Complete lying surface is adjustable by electric motor to inclined position (Trendelenburg) till 20°
- The electric motor to adjust lying surface is controlled by 1 hand switch
- Smooth height adjustment
- Mandatory equipment:
Integrated safety function: Activation of drive by a double tip, automatic block in case of no use
Technology:
Movable on castors with central lock, lowered underframe (1048), paper roll holder (1270K/F)
- Large cross section of column and precise guidance ensure tip-resistant operation
- Covering of the column made of 3 telescope sliding aluminium sections, silver anodized
- High torsional stiffness by using thick-walled rectangular steel tubes for under and upper frame
- Widely-spaced feet and a high dead weight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless down- (- 25°) and upwards (+ 75°) adjustable by gas spring (sitting position), length head part: 750 mm
- Foot part: fixed, length foot part: 1200 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on twin castors with central
lock, Ø 100 mm, underpart lowered,
basic height +20 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled lowering,
underpart lowered, basic height +20 mm;
illustration similar
- Movable on twin castors with central lock, Ø 100 mm, underpart lowered, basic height +20 mm (Art. no. 1048)
- Wheel-lifting/fixing mechanism with 4 foot levers for controlled lowering, underpart lowered, basic height +20 mm (Art. no. 1047)
Hand switch (low voltage),
with magnet on the back to
fasten
1 foot switch (low voltage)
- 1 foot switch (low voltage) (Art. no.1910E)
- 1 hand switch (low voltage) (Art. no.1920E)
Nose opening, in head part
Art. no. 1620
Upholstery part to close
- Nose opening, in head part (Art. no. 1610)
- Upholstery part to close (Art. no. 1620)
Paper roll holder, mounted under head
part (not protruding),
for width 700 mm
Paper roll holder, mounted at foot part
(70 mm protruding), for width
700 mm / 800 mm
- Paper roll holder, mounted under head part (not protruding), for width 700 mm (Art. no. 1270K)
- Paper roll holder, mounted at foot part (70 mm protruding), for width 700 mm / 800 mm (Art. no. 1270K/F / 1280K/F)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (Art. no. 1770)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (Art. no. 1772)
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
1 side guard foldable, chromium-plated,
length: 820 mm
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, length: 800 mm (Art. no. 1005)
- 1 side guard foldable, chromium-plated, completely made of steel tube, length: 820 mm (Art. no. 1080-60)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 700 mm / 800 mm
- 4 wall protection bumpers Ø 150 mm, including mounting, for width 700 mm / 800 mm (Art. no. 1175 / 1176)
1 piece of side rail
1 attachment clamp for side rail,
suitable for pipe: Ø 18 mm
Arm rest for side rail, without
attachment clamp, swivelling and
removable, additional revolving and
tiltable
- 1 piece of side rail, length: 350 mm (Art. no. 1410)
- 1 attachment clamp for side rail, suitable for pipe: Ø 18 mm (Art. no. 1430)
- 1 side arm rest, swivelling and removeable, additional revolving and tiltable (Art. no. B088)
