Table with electric lifting column suitable for C-arm
Model 6100-04E (width: 800 mm)

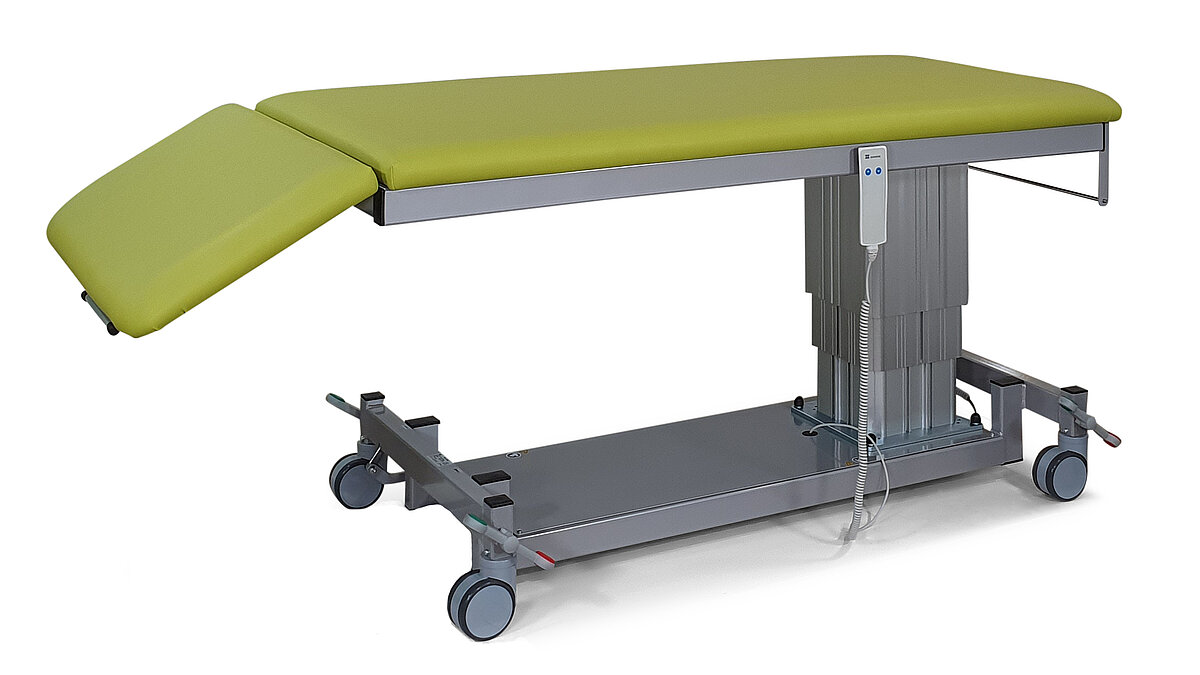

Table green: Model 6100-04E (upholstery colour 64-154 limone) with option: Paper roll holder (1280K/F)
Table light brown: Model 6100-04E (upholstery colour 64-703 pearl) with options: 1-sectioned lying surface (028), paper roll holder (1280K/F)
Table blue: Model 6100-04E (upholstery colour 64-717 deep sea) with options:
Paper roll holder (1280K/F), detachable matress (029)
Lifting column aluminium, silver anodized
Model 6100-03E white aluminium powder coated (RAL 9006)
Model 6100-04E grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Radiolucent; suitable for C-arm (vertical X-ray)
- Movable on twin castors, Ø 100 mm, with central lock
- The electric lifting column is controlled by 1 hand switch
- Dewert-hygiene-equipment
Technical data:
- Electronical height adjustment: 620 mm - 1020 mm in 24 sec.
- Length overall: 2000 mm
- Area which is able to be x-rayed (basic equipment):
Length 1040 mm x width 690 mm - Width overall: 800 mm
- Load capacity: 200 kg (max. weight of patient)
Height adjustment by electric lifting column:
- Height adjustment by electric lifting column (positioned on one side) from 620 mm - 1020 mm, therefore free space under top frame
- The electric lifting column is controlled by 1 hand switch
- Constant adjustment speed even in case of high load by integrated AC-motor with a pressure capacity of 3000N
- Smooth height adjustment
- Mandatory equipment:
Integrated safety function: Activation of drive by a double tip, automatic block in case of no use
Equipment & technology:
- Movable on twin castors, Ø 100 mm, with central lock
- Lying surface with radiolucent area for chest and pevic regions
Upholstery colour: 64-154 limone
- Large cross section of column and precise guidance ensure tip-resistant operation
- Covering of the column made of 3 telescope sliding aluminium sections, silver anodized
- High torsional stiffness by using thick-walled rectangular steel tubes for under and upper frame
- Movable on twin castors, Ø 100 mm, with central lock
- Easy hygiene because of an open construction
- Load capacity: 200 kg
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless up- (+ 40°) and downwards (-30°) adjustable by gas spring, length head part: 420 mm
- Foot part: fixed, length foot part: 1580 mm
- Lying surface with radiolucent area (from end of head part), suitable for chest and pevic regions,
length: 1040 mm x width: 690 mm - Option: Different measures, lying surface 1-sectioned, also with HPL board and removable upholstery, possible
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel, able to be x-rayed
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
Detachable matress (1-sectioned) with HPL board, able to be X-rayed, matress and board with nose opening and upholstery part to close
Lying surface 1-sectioned, width: 730 mm
Art. no. 028-10
Lying surface 1-sectioned, width: 800 mm
- Detachable matress (1-sectioned) with HPL board, able to be X-rayed,
matress and board with nose opening and upholstery part to close,
limited ability to be X-rayed in section of nose opening
measures: 1950 mm x 730 mm
area which is able to be X-rayed: 1340 x 650 mm (Art. no. 029) - Lying surface 1-sectioned, width: 730 mm
area which is able to be X-rayed: 1360 x 620 mm (Art.no. 028) - Lying surface 1-sectioned, width: 800 mm
area which is able to be X-rayed: 1360 x 690 mm (Art. no. 028-10)
Nose opening, in head part
Art. no. 1620
Upholstery part to close
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder, mounted at foot part,
for width 800 mm
- Paper roll holder, mounted at foot part, for width 800 mm (Art. no. 1280K/F)
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
1 side guard lateral lowerable, chromium-plated,
completely made of steel tube,
length: 1060 mm
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, length: 800 mm (Art. no. 1005)
- 1 side guard lateral lowerable (foldable), chromium-plated, completely made of steel tube, length: 1060 mm (Art. no. 1080)

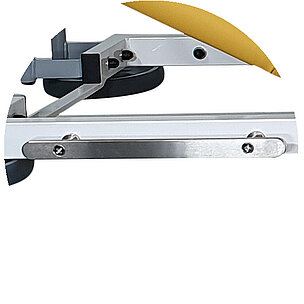

1 piece of side rail, length: 350 mm
Art. no. 1420
1 piece of side rail, length: 1300 mm
- 1 piece of side rail, length: 350 mm (Art. no. 1410)
- 1 piece of side rail, length: 1300 mm (Art. no. 1420)
