Recovery and patient transport table with hydraulic height adjustment
Model 1093-../H

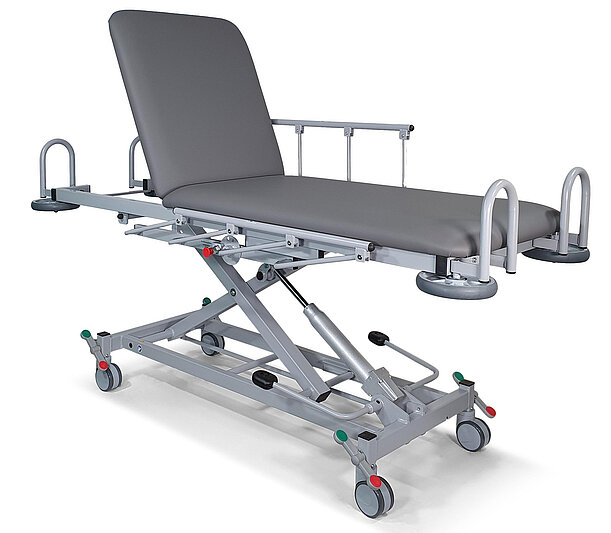

Model 1093-04/H (upholstery colour 64-712 slate grey) with basic equipment
Model 1093-00/H white powder coated (RAL 9010)
Model 1093-03/H white aluminium powder coated (RAL 9006)
Model 1093-04/H grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface 2-sectioned, long head part
- Manual foot operated height adjustment by hydraulic pump
- Pedals for foot-controlled height positioning on both sides of the table
- Movable on twin castors, Ø 100 mm, with central lock
- Push handles at head and foot part
- 4 wall protection bumpers
- 2 side guards lateral lowerable
- Dewert-hygiene-equipment
Technical data:
- Manual hydraulic height adjustment: 540 to 990 mm
- Length overall: 1.950 mm
- Width overall: 700 mm
- Load capacity: 225 kg
Hydraulic height adjsutment:
- Manual foot operated height adjustment from 540 mm to 990 mm by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Equipment and technology:
- Movable on twin castors, Ø 100 mm, with central lock; 1 castor with direction lock
- Good handling when pushing the table due to 4 push handles, at head and foot part, placed at the frame outside points, white aluminium (RAL 9006) powder coated
- Longitudinal and lateral wall protection due to 4 big wall bumpers, Ø 200 mm, placed at the edges of top frame
- 2 side guards (white aluminium (RAL 9006) powder coated) lateral lowerable, lay down besides upholstery, below upholstery surface level, completely made of steel tube
- Recovery upholstery enables pleasant resting comfort due to medium-soft upholstery with cold foam cover
upholstery colour: 64-712 slate grey
- Very stable single frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Easy hygiene because of an open construction
- Load capacity: 225 kg
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless adjustable (0° - +75°) by gas spring, length head part: 750 mm
- Foot part: fixed, length foot part: 1.200 mm
Recovery upholstery:
- Thickness of upholstery: 70 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- Upholstery medium-soft:
The padding is made of 2 pure foam in volume weight of 46 and a cold foam cover - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors, Ø 125 mm with central lock,
basic height + 30 mm
Footbar for central lock,
at foot end
- Without basic mobility (art. no. B1181)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 30 mm (art. no. B1185)
- Footbar for central lock (art. no. 1199)
Paper roll holder, mounted under head
part, for width 700 mm / 800 mm
- Paper roll holder, mounted under head part, for width 700 mm / 800 mm (art. no. 011K / 013K)
- Width of upholstery: 800 mm (art. no. 1093-016)
- Soft covering for pleasant resting comfort, for width 700 mm/ 800 mm, thickness 80 mm (art. no. B1770 / B1780)
1 piece of side rail, length: 350 mm
1 attachment clamp for side rail,
suitable for pipe: Ø 18 mm
Infusion pole, without attachment clamp
Storage basket
- Side rail, length: 350mm (art. no. B1410)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. B1430)
- Infusion pole, without attachment clamp (art. no. B1450)
- Storage basket, measures: 530 x 370 x 80 mm (art. no. B1850)
