Versatile table with hydraulic height adjustment
Model 1050-../H

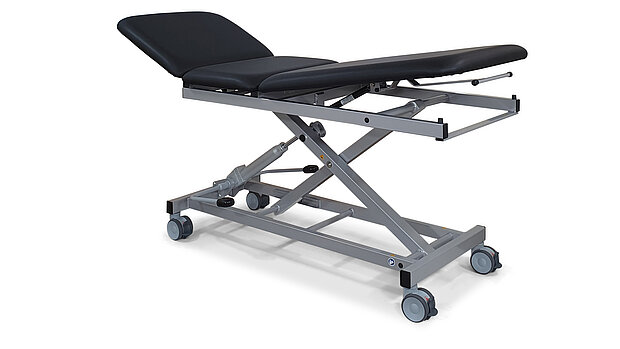

Model 1050-04/H (upholstery colour 64-716 black) with options:
Movable on comfort twin castors, each with lock (040N), without nose opening (1615-EF)
Model 1050-00/H white powder coated (RAL 9010)
Model 1050-03/H white aluminium powder coated (RAL 9006)
Model 1050-04/H grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface 3-sectioned
- With integrated opening for nose and cushion to close
- The table is not movable
- Manual foot operated height adjustment by a hydraulic pump
- Pedals for foot-controlled height positioning on both sides of the table
- Dewert-hygiene-equipment
Technical data:
- Manual foot operated height adjustment: 490 to 940 mm
- Length overall: 1950 mm
- Width overall: 700 mm
- Load capacity: 225 kg
Hydraulic height adjustment:
- Manual foot operated height adjustment by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Very stable single frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 225 kg
Upholstery:
Lying surface:
3-sectioned:
- Head part stepless up- (+ 40°) and downwards (-30°) adjustable by gas spring
- Length head part: 550 mm, with integrated nose opening and cushion to close
- Middle part: fixed
- Lenght middle part: 480 mm
- Foot part stepless adjustable (0° to + 50°) by gas spring
- Length foot part: 920 mm
Upholstery:
- Thickness of upholstery: 65 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 040N)
- Movable on twin castors, Ø100 mm with central lock, basic height + 20 mm (art. no. 046)
- Movable on comfort twin castors, Ø125 mm with central lock, basic height + 50 mm (art. no. B1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 045N)
- Head part 3-sectioned including arm support, stepless adjustable and removable (art. no. 010K/015K not possible) (art. no. 056)
- Loss of nose opening and upholstery part to close (art. no. 1615-EF)
- Paper roll holder, mounted under head part, for width 700 mm / 800 mm (art. no. 010K) / (art. no. 015K)
- Paper roll holder, mounted at foot part, for width 700 mm / 800 mm (art. no. 010K/F) / (art. no. 015K/F)
- Width of lying surface: 800 mm (art. no. 006)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. B1770)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. B1780)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. B1772)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. B1782)
- 2 side guards lateral lowerable, RAL 9006 powder coated, made of steel tube, length: 820 mm, including upholstery medium-soft (art. no. 1008)
- 4 wall protection bumpers Ø 150 mm, including mounting, for width 700 mm / 800 mm (art. no. B1175) / (art. no. B1176)
