Therapy table with wide adjustment range and 3 upholstery segments
4815-..E
Height adjustment with large adjustment range
is effected by a a high-performance freewheeling electric motor with high adjustment speed which corresponds to the newest advice of BfArM.
Model 4815-00E (upholstery colour 64-708 cherry) with options:
Movable on twin castors with central lock (046), surrounding foot control (095E), paper roll holder (010F)
4815-00E (width: 700 mm) white powder coated (RAL 9010)
4815-03E (width: 700 mm) white aluminium powder coated (RAL 9006)
4815-04E (width: 700 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Foot part stepless adjustable (+75°) to sitting position
- Table is not movable
- Height adjustment by an electromotive drive
- Dewert-hygiene-equipment
Technical data:
- Height adjustment: 450 mm – 1000 mm in 18 sec.
- Length overall: 1970 mm
- Width overall: 700 mm
- Load capacity: 250 kg (max. weight of patient)
Electronical height adjustment:
- Electronical height adjustment (450 mm – 1000 mm in 18 sec.)
- Electromotive drive control by foot switch (option: hand switch)
- Constant adjustment speed even in case of high load
Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
Technology:
Movable on twin castors with central lock (046), surrounding foot control (095E), paper roll holder (010F);
Upholstery colour: 64-708 cherry
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
3-sectioned:
- Head part stepless up- (+45°) and downwards (-35°) adjustable by gas spring, length head part: 500 mm; with nose opening and upholstery part to close
- Middle part: fixed, length middle part: 530 mm
- Foot part stepless adjustable (+75°) to sitting position, length foot part: 940 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 040N)
- Movable on twin castors, Ø100 mm with central lock, basic height + 20 mm (art. no. 046)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
Foot switch rail, surround,
security adjustment
- 1 foot switch (low voltage) (art. no. 091E)
- 1 hand switch (low voltage) (art. no. 090E)
- Foot switch fixation at the underframe (art. no. 092E)
- Foot switch rail, lateral, on both sides of the table (art. no. 094E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered - Foot switch rail, surround (art. no. 095E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
length head part: 450 mm, length foot part: 990 mm
Loss of nose opening and upholstery part to close

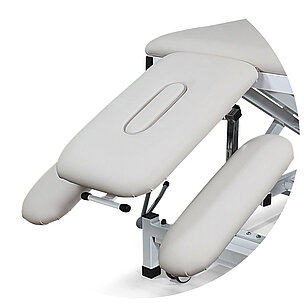

Head part 3-sectioned, arm rests downwards adjustable from -25° to +45° and removable
- Loss of nose opening and upholstery part to close (Art. no. 1615-EF)
- Head part 3-sectioned, arm rests downwards adjustable from -25° to +45° and removable
(art. no. 010K not possible)
measures: Head part: L. 500 mm x W. 370 mm | Arm rests: L. 420 mm x W. 160 mm (Art. no. 055)
Paper roll holder, mounted under head
part (not protruding),
for width 700 mm
Paper roll holder, mounted at foot part,
for width 700 mm
Paper roll holder, mounted at foot part,
for width 700 mm
- Paper roll holder, mounted under head part (not protruding), for width 700 mm, not in case of 3-sectioned head part (Art. no. 010K)
- Paper roll holder, mounted at foot part (70 mm protruding), for width 700 mm (Art. no. 010F)
- Width of upholstery: 800 mm (Art. no. 007)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (Art. no. B1770)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (Art. no. B1772)
- 1 arm rest, fixed, swivelling and removable, additional revolving and tiltable (Art. no. 088)
