Table for echocardiography with tilt function
Model 2095-..E
Model 2095-00E (upholstery colour 64-702) with options:
1 pair attachment clamps (2090-036), upholstery for strap (2090-034), 1 safety belt with automatic lock (2090-0351)
Model 2095-00E white powder coated (RAL 9010)
Model 2095-03E white aluminium powder coated (RAL 9006)
Model 2095-04E grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Height and tilt function by electric motor adjustment
- Cut-out in the head part for echocardiography with upholstery part to close

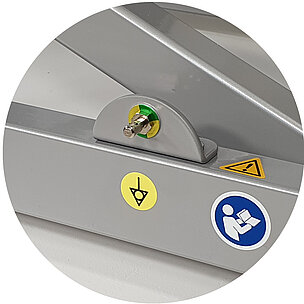

- Plug connector for potential equalization in acc. to DIN 42801

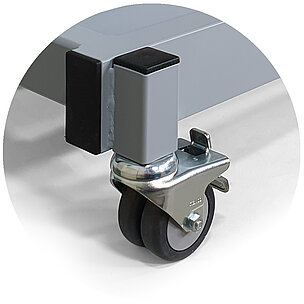

- Movable on 4 double-wheels castors ∅ 75 mm, each with lock
- Dewert-hygiene-equipment
Technical data:
- Electronical height adjustment 590 mm - 900 mm in 34 sec.
- Electronical tilt adjustment: 0° - +85°
- Length of lying surface: 1930 mm, length overall: 1960 mm
- Width of lying surface: 700 mm, width overall: 850 mm
- Load capacity: 180 kg (patient in lying position)
- Attention: necessary room height 2.40 m
Electronical adjustment:
- Electronical height adjustment (620 mm – 930 mm) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by foot switch (option: hand switch)
- Complete lying surface tiltable by electric motor from 0° to +85°
- The motor for tilt-function is controlled by hand switch
- Plug connector for potential equalization in acc. to DIN 42801
- Constant adjustment speed even in case of high load
-
Mandatory equipment:
Integrated safety devices (according to the newest advice of BfArM):
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards (motor for height adjustment), automatic declutch in case of resistance
Equipment & technology:
∅ 75 mm, each with lock
(to stand on):
removable or electronical adjustable
- Movable on 4 twin castors ∅ 75 mm, each with lock
- Foot plate to stand on (upholstered), removable
- Side rails along lying surface (left and right side) for special tilt table equipment
- Plug connector for potential equalization in acc. to DIN 42801
upholstery colour: 64-702 white
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Easy hygiene because of an open construction
- Load capacity: 180 kg
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless adjustable (+45°) by gas spring, length head part: 800 mm
- Cut-out in the head part:
Length: 300 mm x Width: 250 mm
Place of cut-out left side, patient lying in supine position - With upholstery part to close the cut-out
- Foot part fixed, length foot part: 1130 mm
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of pure foam in volume weight of 75
- Each layer comprises a homogeneous, closed cellular structure
- Dewert-hygiene-equipment:
o Hinge lid made of identical upholstery covering
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
1 foot switch (low voltage)
Hand switch (low voltage),
with magnet on the back to
fasten

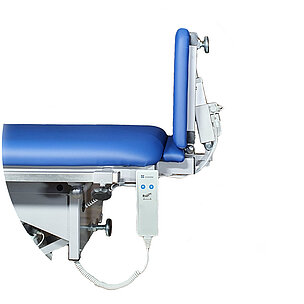

Foot plate to stand on up-
and downwards
adjustable by electric motor
(not removable)
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot plate to stand on up- and downwards adjustable by electric motor (not removeable) (art. no. 90-043E)

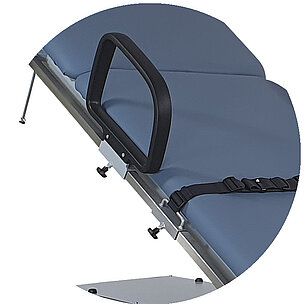

1 pair grip handles, big
1 pair grip handles, small
- 1 pair grip handles, big (art. no. 2090-038)
- 1 pair grip handles, small (art. no. 2090-028)
Upholstery for strap
1 safety belt with velcro fastener
1 safety belt with automatic lock
1 pair belt guides
- Upholstery for strap (art. no. 2090-034)
- 1 safety belt (art. no. 2090-035)
- 1 safety belt with automatic lock (art. no. 2090-0351)
- 1 pair attachment clamps (art. no. 2090-036)
- Work and rest desk, up- and downwards adjustable (art. no. 2090-037)
- Work and rest desk, rigid (art. no. 2090-039)
Attachment clamp to fix
arm rest at side rail
Art. no. 2090-059
Arm rest
- Arm rest (art. no. 2090-059)
- Attachment clamp to fix arm rest at side rail (art. no. 2090-0143)
- Width of upholstery 800 mm (art. no. 2090-080)
Paper roll holder, mounted under
head part (not protruding)
- Paper roll holder (art. no. 2090-1272)
Extension rail
Angle gauge, on both sides
of the table
- Extension rail (art. no. 2090-25)
- Angle gauge, bothsides the table (art. no. 2090-090)
