Steps with handrail

Model 323-00, white powder coated (RAL 9010)
Model 323-03, white aluminium powder coated (RAL 9006)
Model 323-04, grey aluminium powder coated (RAL 9007)

323-04

With one-sided handrail for help and safety of your patients

  • Unterpart made of square tube, powder coated
  • Platform is made of  PUR-Foam with wooden kernel, colour: black
  • Underpart of step additionally with lateral support to prevent the risk of tipping over


Measures:
Height step 1: 230 mm
Height step 2: 460 mm
Dimensions of the platform: each 550 x 300 mm


Measures overall:
Height upper edge handrail: 1350 mm
Width incl. lateral support: 800 mm
Depth: 600 mm

From left to right: white (RAL 9010), white aluminium (RAL 9006), grey aluminium (RAL 9007)

For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*

*Due to technical reasons colour deviations of shown and origin colours are possible.


Other colours possible on request.
Do not hesitate to contact us!

Model 324-00, white powder coated (RAL 9010)
Model 324-03, white aluminium powder coated (RAL 9006)
Model 324-04, grey aluminium powder coated (RAL 9007)

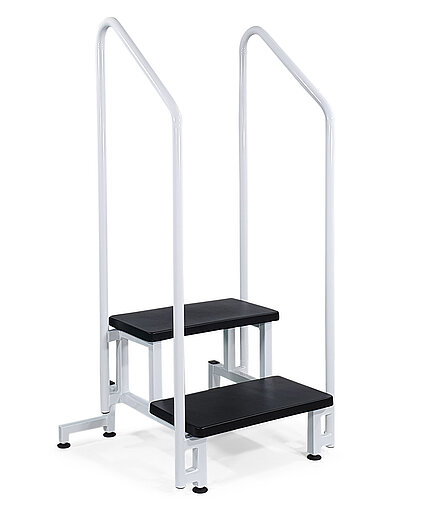

324-00

With both-sided handrail for help and security of your patients

  • Underpart made of square tube, powder coated
  • Platform is made of  PUR-Foam with wooden kernel, colour: black
  • Underpart of step additionally with lateral support to prevent the risk of tipping over


Measures

  • Height step 1: 230 mm
  • Height step 2: 460 mm
  • Dimensions of the platform: each 550 x 300 mm

Measures overall:

  • Height upper edge handrail: 1350 mm
  • Width incl. lateral support: 1050 mm
  • Depth: 600 mm
From left to right: white (RAL 9010), white aluminium (RAL 9006), grey aluminium (RAL 9007)

For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*

*Due to technical reasons colour deviations of shown and origin colours are possible.


Other colours possible on request.
Do not hesitate to contact us!

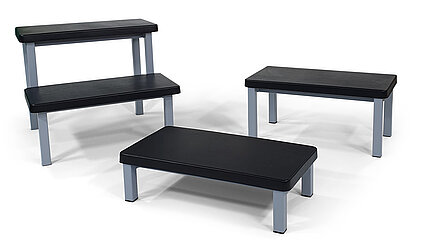

Steps made of square tube









Basic equipment:

  • Underpart made of square tube 30x30x2 mm
  • Tread made of polyurethane, coloured black
  • Tread-size: 550 mm x 300 mm
From left to right: white (RAL 9010), white aluminium (RAL 9006), grey aluminium (RAL 9007)

For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*

*Due to technical reasons colour deviations of shown and origin colours are possible.


Other colours possible on request.
Do not hesitate to contact us!

319-00
Step
Model 319-00,
white powder coated (RAL 9010)
Model 319-03,
white aluminium powder coated (RAL 9006)
Model 319-04,
grey aluminium powder coated (RAL 9007)



  • Measures:
    Height: 150 mm

  • Weight: 4,5 kg

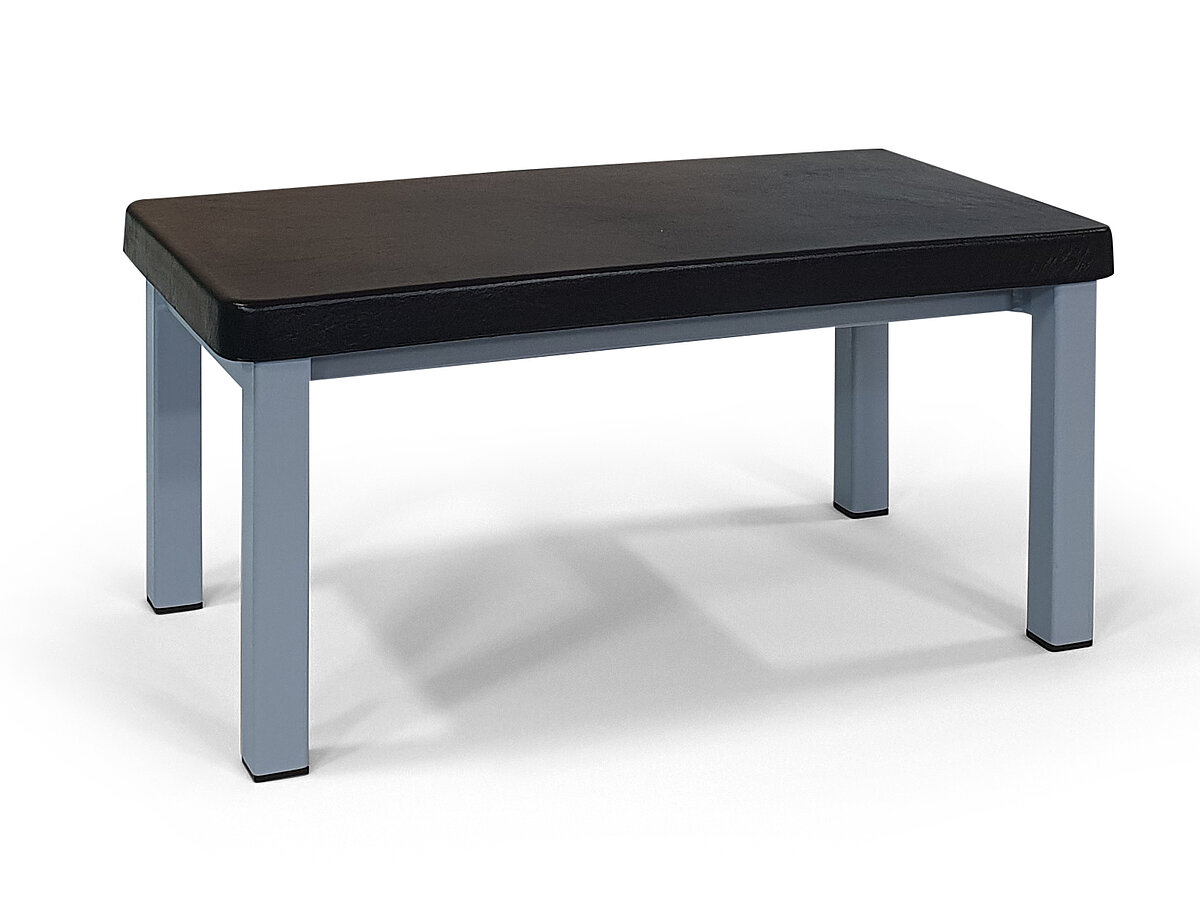

320-03
Step
Model 320-00, white powder coated (RAL 9010)
Model 320-03, white aluminium powder coated (RAL 9006)
Model 320-04, grey aluminium powder coated (RAL 9007)
  • Measures:
    Height: 250 mm

  • Weight: 5 kg
321-03
Double-step
Model 321-00,
white powder coated (RAL 9010)
Model 321-03,
white aluminium powder coated (RAL 9006)
Model 321-04,
grey aluminium powder coated (RAL 9007)
  • 2 treads
  • Measures:

    Height:
    Step 1: 230 mm
    Step 2: 460 mm

    overall: L: 560 mm, W: 300 mm

  • Weight: 11 kg
