Height adjustable stools
Swivel stool
Model 420-02
Basic equipment:
Lower part:
- 5-arm polished aluminium base, ∅: 560 mm
- Movable on 5 double castors, each ∅ 50 mm, with load dependent wheel brakes
- Castors usable for hard and soft floors
- High resistant castors, cover made of zinc-die-casting, cover chromed
- Castors with load dependent wheel brakes means:
*Swivel stool burdened: Castors free movable
*Swivel stool unburdened: Castors not movable - With going around foot rest
Seat part:
- Seat height adjustable by gas spring from 550 mm to 740 mm;
with release hand-lever under seat - Seat base: Laminated wood
- Seat with moulded upholstery ∅ 420 mm, thickness 70 mm
- With upholstered backrest, manual height adjustable
- See colour card for choosing colour for covering
- Load capacity: 130 kg
Total weight: 12 kg
Model 420-02K
- Height adjustable from 440 mm to 570 mm
- Without going around foot rest
Model 420-02L
- Height adjustable from 600 mm to 840 mm
Swivel stools
Models 410-02, 411-02, 412-02, 414-02
Basic equipment:
- 5-arm polished aluminium base,
Ø 560 mm
- Seat height adjustable by gas spring
- With around going hand ring release under seat for height positioning
- Seat base: Laminated wood
- See colour card for choosing color for upholstery
- Option: height adjustment small (xxx-02K)
height adjustment big (xxx-02L)
- Load capacity: 130 kg
Swivel stools
Models
Seat upholstery
Flat upholstery,
Ø 360 mm
Thickness: 35 mm
Seat upholstery
Moulded upholstery,
Ø 370 mm
Thickness: 70 mm
Mobility
- Movable on 5 high-quality
universal rollers, Ø 50 mm;
for hard and soft floors
- Cover made of zinc-die-casting,
chromium-plated
- Rollers according to legal
regulations with brakets,
only movable under load
Model 410-02
• Height adjustment:
490 mm - 680 mm
• Weight: 6,5 kg
Variants:
• 410-02K
Height adjustment:
390 mm to 520 mm
• 410-02L
Height adjustment:
540 mm to 780 mm
Model 411-02
• Height adjustment:
530 mm to 720 mm
• Weight: 8 kg
Variants:
• 411-02K
Height adjustment:
420 mm to 550 mm
• 411-02L
Height adjustment:
580 mm to 820 mm
Not movable
- Fixed standing on
floor glides with
high bearing face (50 mm)
Model 412-02
• Height adjustment:
460 mm to 650 mm
• Weight: 6,5 kg
Model 414-02
• Height adjustment:
500 mm to 690 mm
• Weight: 8 kg
Instructions for swivel stool

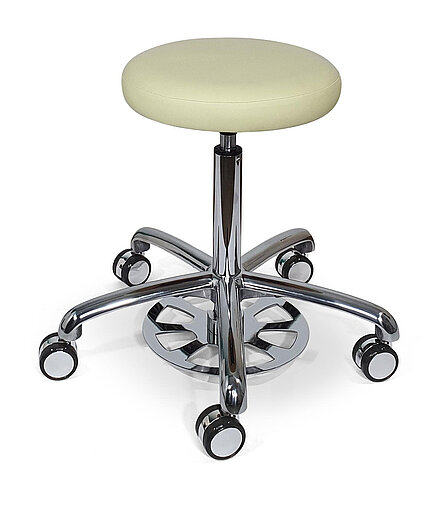

Swivel stool
with foot operated adjustment - Model 417-02
Basic equipment:
- 5-arm polished aluminium base
- Seat height adjustable by gas spring from 540 mm to 720 mm
- Seat base: Laminated wood
- Seat with moulded upholstery, 370 mm ∅, thickness 70 mm
- Movable on 5 double castors, each 65 mm ∅
- Castors usable for hard and soft floors
- Foot operated height adjustment by push plate at the lower frame
- See colour card for choosing colour for covering
Load capacity: 130 kg
Total weight: 9 kg
Not height adjustable stools

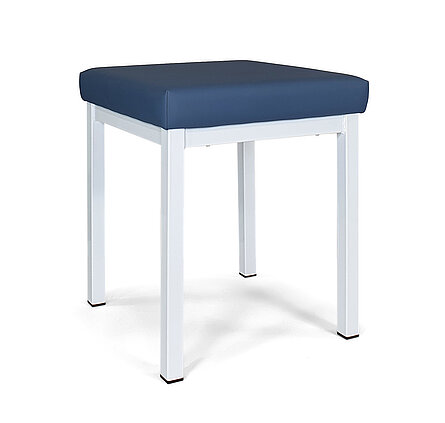

Model 400-..
Model 400-00 white powder coated (RAL 9010)
Model 400-03 white aluminium powder coated (RAL 9006)
Model 400-04 grey aluminium powder coated (RAL 9007)
- Underpart made of square tube 30x30x2 mm
- Seat with moulded upholstery, thickness 65 mm
- Measures: 420 x 420 mm
- Seat height: 480 mm
- See colour card for choosing colour for covering
- Load capacity: 200 kg
- Total weight: 6 kg
Model 404-01
- 5-leg-stool, made of round pipe, chromed
- Seat base of laminated wood, Ø 350 mm
- Seat flat upholstered, thickness: 35 mm
- Measures:
Underpart: Ø 520 mm
Seat height: 490 mm
- See colour card for choosing colour for covering
- Load capacity: 200 kg
- Total weight: 4 kg
