Tilt table with fixed height and electromotive tilt adjustment
Model 90-..E

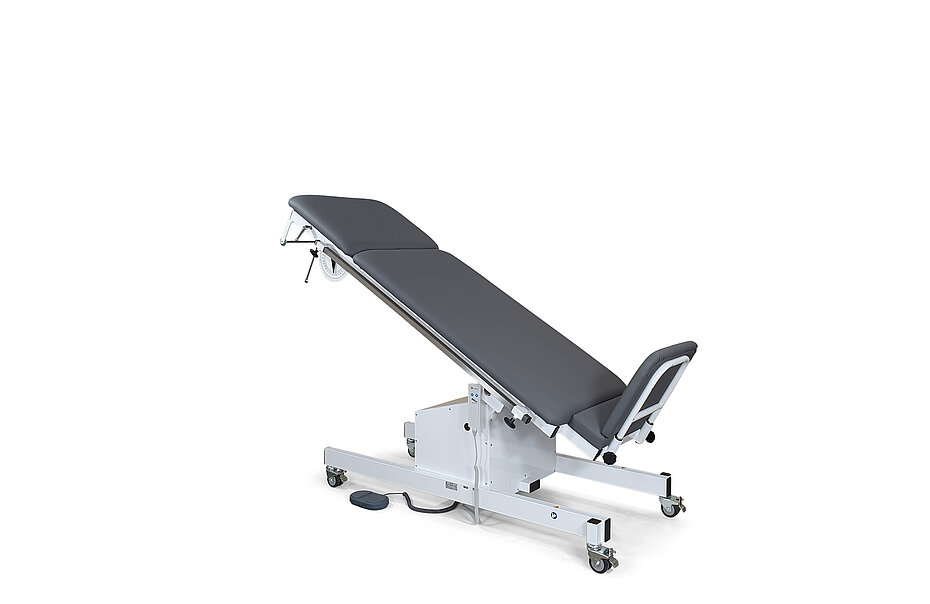

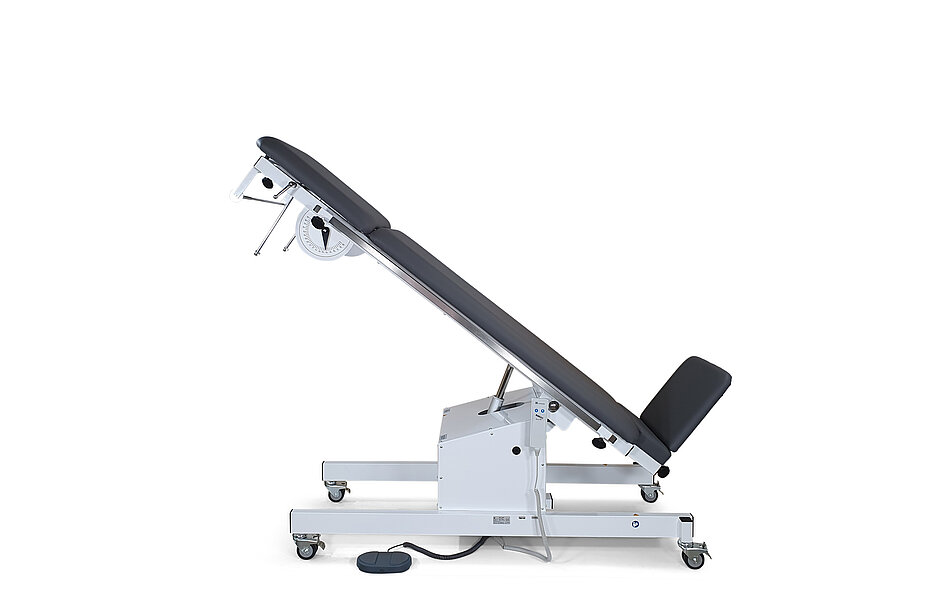

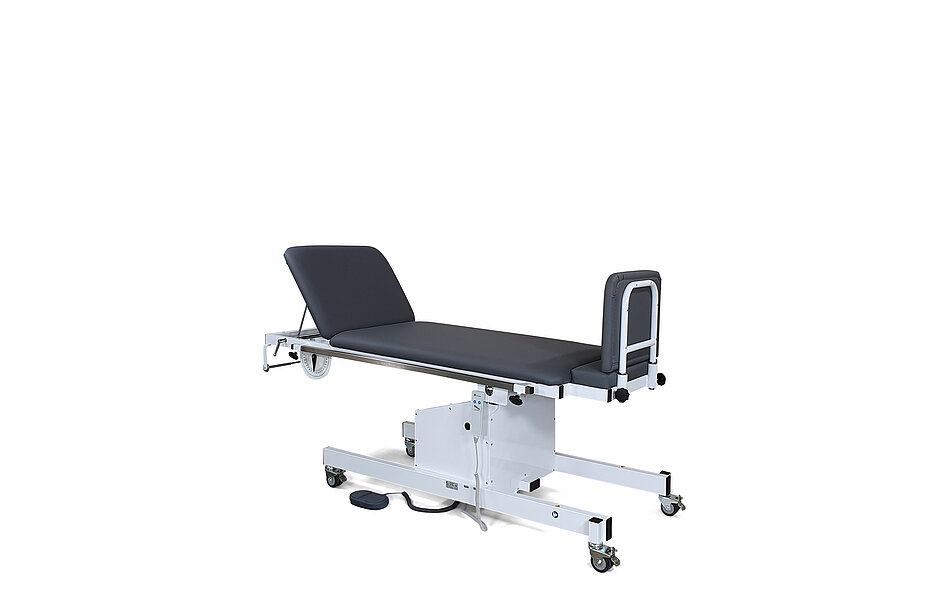

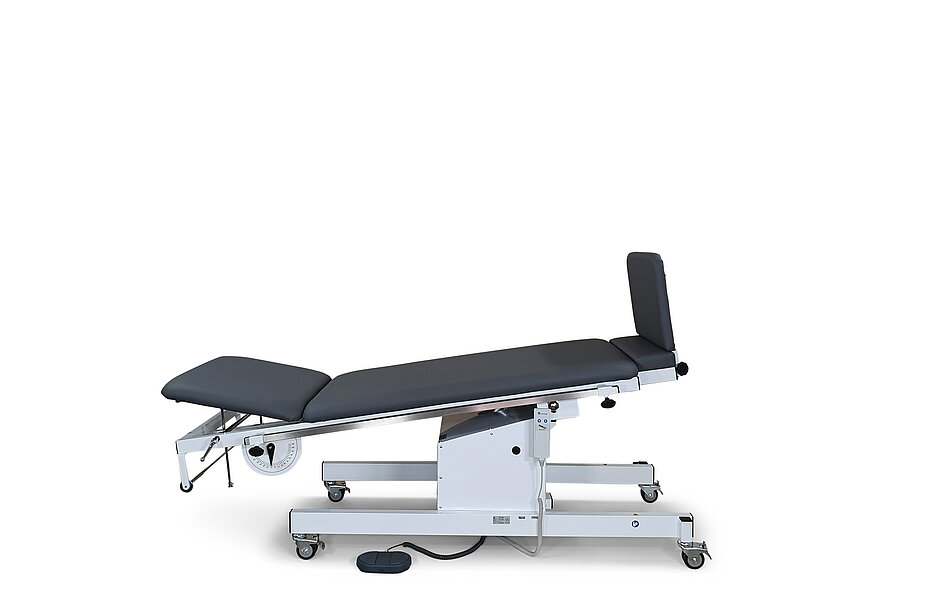

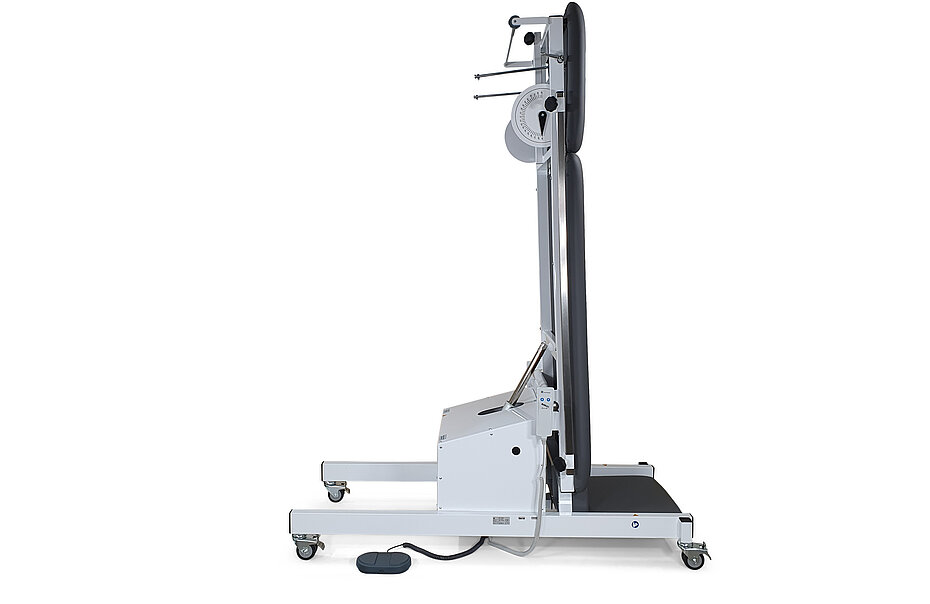

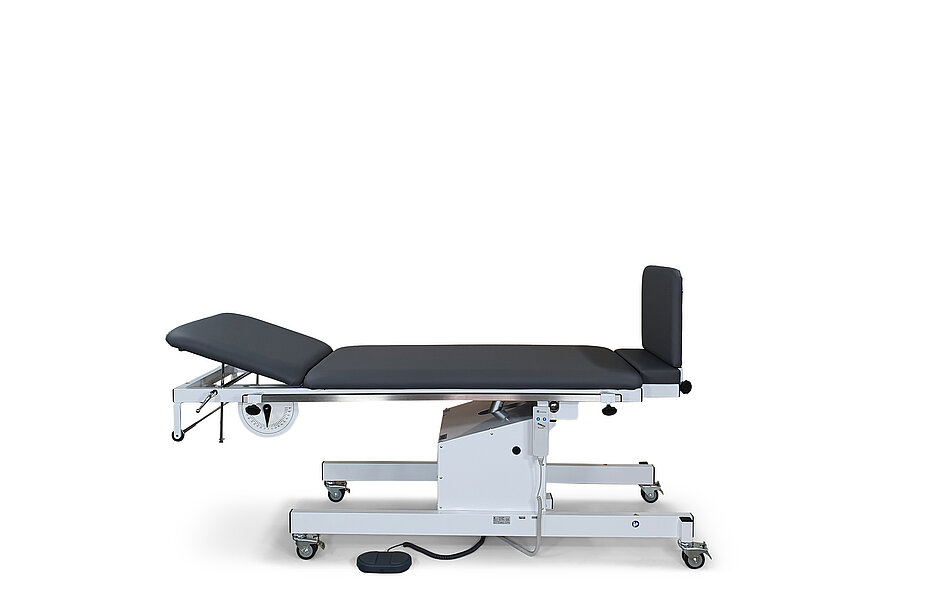

Model 90-00E (upholstery colour 64-715 anthracite) with options:
Head part manual positive adjustable (90-058), angle gauge (90-090), paper roll holder (1272)
Model 90-00E white powder coated (RAL 9010)
Model 90-03E white aluminium powder coated (RAL 9006)
Model 90-04E grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 1-sectioned
- Tilt function by electric motor adjustment
- Movable on 4 twin castors ∅ 75 mm, each with lock
- Dewert-hygiene-equipment
Technical data:
- Electronical tilt adjustment: -15° - +85° in 22 sec.
- Length of lying surface: 1930 mm, length overall: 1960 mm
- Width of lying surface: 700 mm, width overall: 850 mm
- Load capacity: 180 kg (patient in lying position)
- Attention: necessary room height: 2.15 m
Equipment & Technology:
- Movable on 4 twin castors ∅ 75 mm, each with lock
- Foot plate to stand on (upholstered), removable

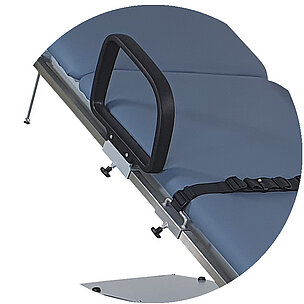

- Side rails along lying surface (left and right side) for special tilt table equipment
upholstery colour: 64-715 anthracite
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Movable on 4 twin castors ∅ 75 mm, each with lock
- Foot plate to stand on (upholstered), removable
- Side rails along lying surface (left and right side) for special tilt table equipment
- Complete lying surface tiltable from -15° to +85° by AC-motor with a pressure capacity of 10000 N
- The motor for tilt-function is controlled by hand switch and foot switch
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety function: Activation of drive by a double tip, automatic block in case of no use
- Load capacity: 180 kg
upholstery colour: 64-715 anthracite
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Movable on 4 twin castors ∅ 75 mm, each with lock
- Foot plate to stand on (upholstered), removable
- Side rails along lying surface (left and right side) for special tilt table equipment
- Complete lying surface tiltable from -15° to +85° by AC-motor with a pressure capacity of 10000 N
- The motor for tilt-function is controlled by hand switch and foot switch
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety function: Activation of drive by a double tip, automatic block in case of no use
- Load capacity: 180 kg
Upholstery:
Lying surface:
1-sectioned:
- Length: 1930 mm, width: 700 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of pure foam in volume weight of 46 and 75
- Each layer comprises a homogeneous, closed cellular structure
- Dewert-hygiene-equipment:
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
1 foot switch (low voltage)
Hand switch (low voltage),
with magnet on the back to
fasten
Foot plate to stand on up-
and downwards
adjustable by electric motor
(not removable)
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot plate to stand on up- and downwards adjustable (+15° to -20°) by electric motor (not removeable) (art. no. 90-043E)
Head part up- and downwards adjustable by gas spring
- Head part up- and downwards adjustable by gas spring (art. no. 90-041)
- Head part upwards adjustable by gas spring (art. no. 90-042)
1 pair grip handles, big
1 pair grip handles, small
- 1 pair grip handles, big (art. no. 90-038)
- 1 pair grip handles, small (art. no. 90-028)
Upholstery for strap
1 safety belt with velcro fastener
1 safety belt with automatic lock
1 pair belt guides
- Upholstery for strap (art. no. 90-034)
- 1 safety belt (art. no. 90-035)
- 1 safety belt with automatic lock (art. no. 90-0351)
- 1 pair attachment clamps (art. no. 90-036)
- Work and rest desk, up- and downwards adjustable (art. no. 90-037)
- Work and rest desk, rigid (art. no. 90-039)
Attachment clamp to fix
arm rest at side rail
Art. no. 2090-059
Arm rest
- Arm rest (art. no. 90-059)
- Attachment clamp to fix arm rest at side rail (art. no. 90-0143)
- Width of upholstery 800 mm (art. no. 90-080)
Paper roll holder, mounted under
head part (not protruding)
- Paper roll holder (art. no. 90-1272)
Extension rail
Angle gauge, on both sides
of the table
- Extension rail (art. no. 90-25)
- Angle gauge, bothsides the table (art. no. 90-090)
