Multipurpose examination table
Model 2640XL

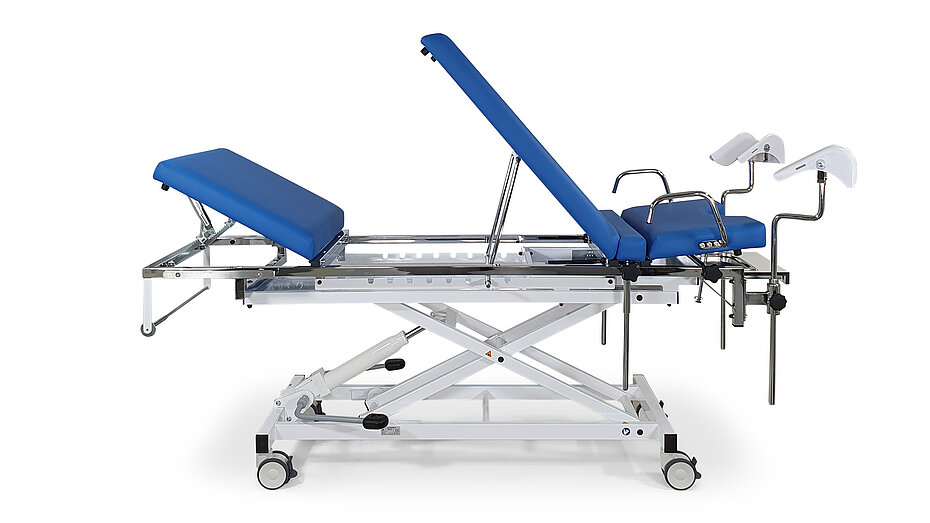

Table light-blue (upholstery colour 64-174 sky): Model 2640-01XL/H with options:
Paper roll holder (1265K), side rail (1410), leg supports (1510); frame colour -01 (chromium-plated) is no longer avilable

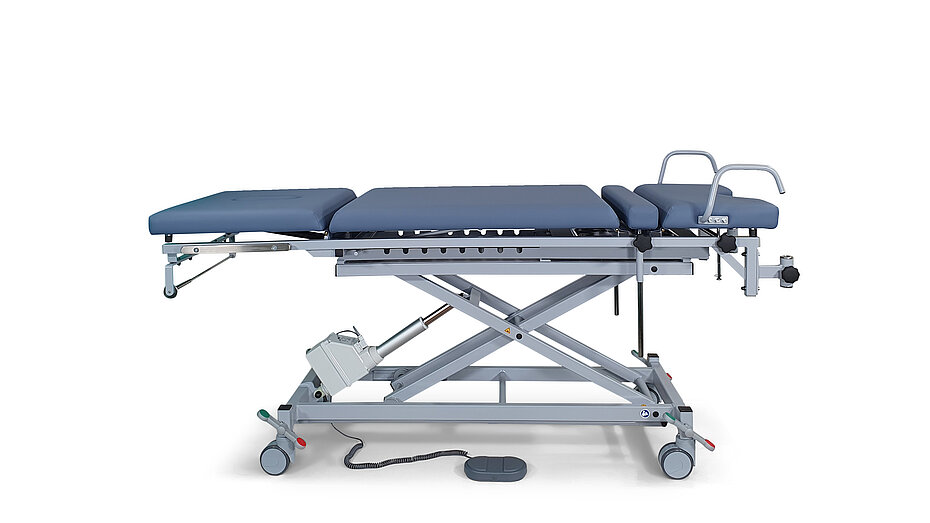

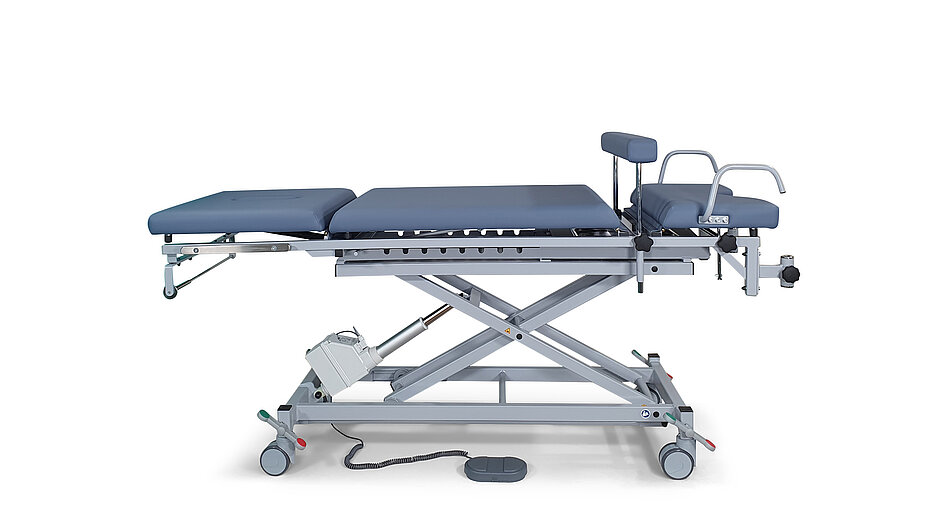

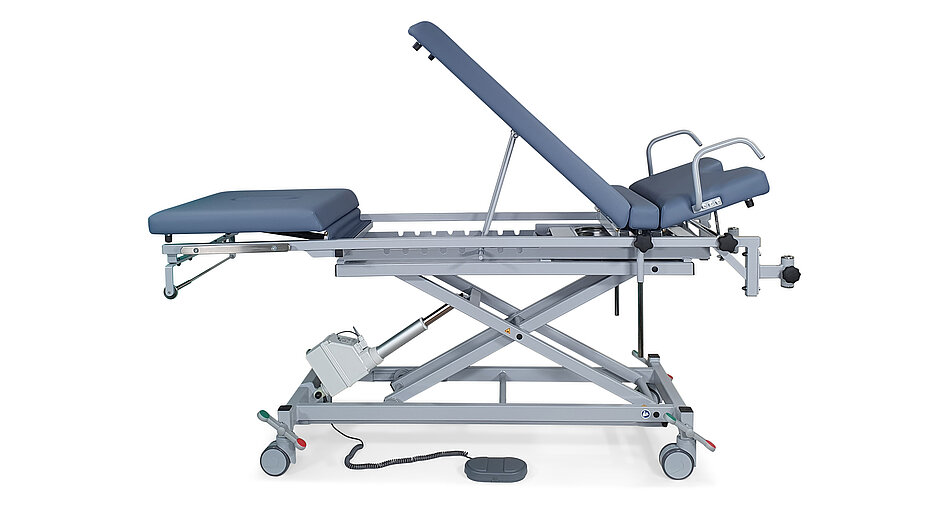

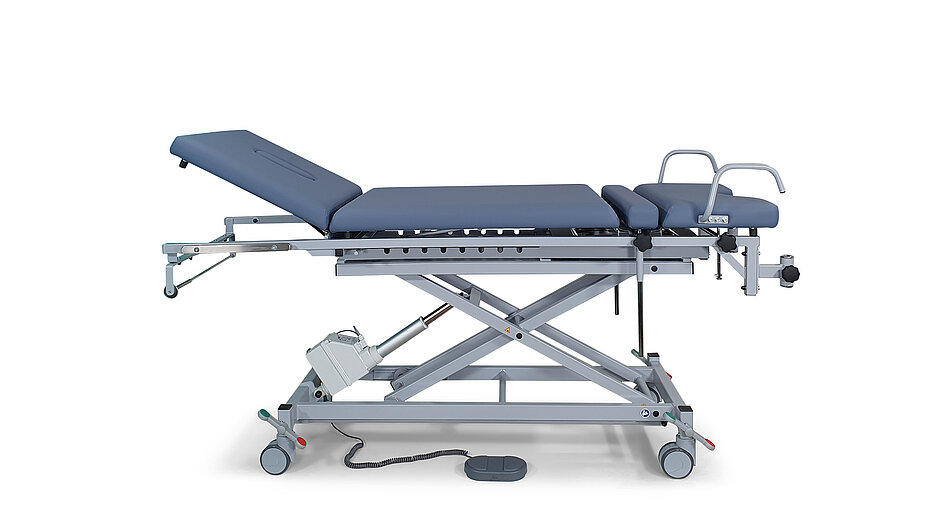

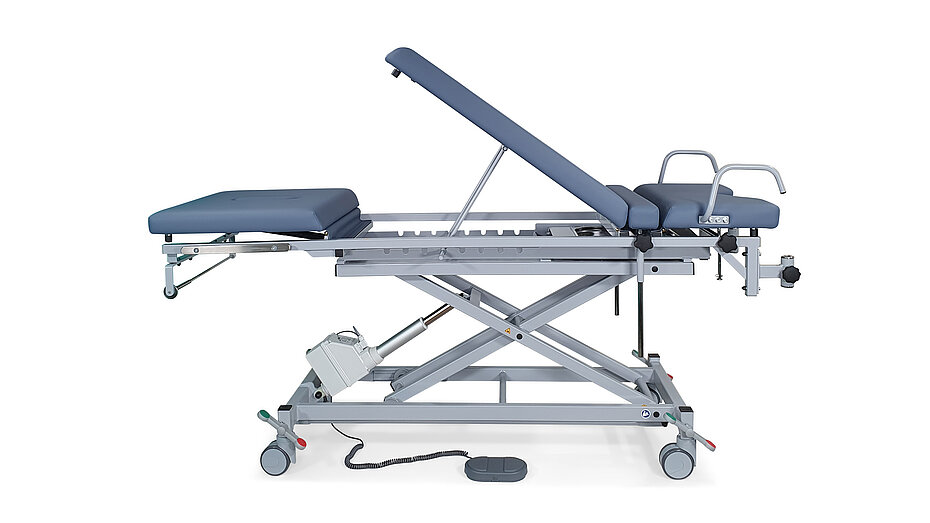

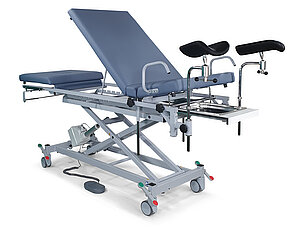

Table grey blue (upholstery colour 64-701 stone blue): Model 2640-03XLE with options:
loss of basic mobility (1182), movable on twin castors with central lock (1180N), head part adjustable by gas spring (1655), head part with nose opening and upholstery part to close (1610, 1620), paper roll holder (1265K), side rail (1410)
2640-00XLE and 2640-00XL/H white powder coated (RAL 9010)
2640-03XLE and 2640-03XL/H white aluminium powder coated (RAL 9006)
2640-04XLE and 2640-04XL/H grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 4-sectioned
- Head part 30° positive adjustable, middle part 50° positive adjustable
- Rectoscopy insert height adjustable and fixable
- Seat section with half-round cutout, manually inclinable (20°)
- Movable on comfort twin castors, each with lock
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o Electronical height adjustment: 620 mm – 1.060 mm in 22 sec.
o Manual hydraulic height adjustment: 640 mm – 1.060 mm - Length overall: 1.980 mm
- Width overall: 650 mm
- Load capacity: 220 kg (max. weight of patient)
Height adjustment optionally:
upholstery colour: 64-701 stone blue
- Electronical height adjustment (620 mm – 1.060 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by foot switch (option: hand switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
upholstery colour: 64-174 sky;
frame colour -01 (chromium-plated) is no longer avilable
- Manual foot operated height adjustment (640 mm – 1.060 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Equipment and technology:
- Hand grips on both sides of the seat section
- Drawable basin (stainless steel) under seat, basin support: HPL panel
- Including clamps for leg holders (leg holders = available as an option)
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Moveable on comfort twin castors, each with lock, Ø 100 mm
- Easy hygiene because of an open construction
- Load capacity: 220 kg
Upholstery:
Lying surface:
4-sectioned:
- Head part 30° positive adjustable by 2 metal rachets, length head part: 550 mm
- Middle part 50° positive adjustable by rack system, length middle part: 930 mm
- Rectoscopy insert to lift up and fixable, width: 100 mm
- Seat section with half-round cut-out, manually inclinable (20°), length seat section: 400 mm
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Loss of standard mobility
Movable on twin castors, Ø 100 mm with
central lock, basic height +20 mm
- Loss of standard mobility (Movable on 4 comfrt twin castors, Ø 100 mm, each with lock) (Art. no. 1182)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (Art. no. 1180N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
- Foot switch rail, lateral, on both sides of the table (art. no. 1950E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Head part stepless adjustable
by gas spring
Nose opening
Art. no. 1620
Upholstery part to close
- Head part stepless adjustable by gas spring from 0° to +60° (art. no. 1655)
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder, mounted under head part (not protruding)
- Paper roll holder, mounted under head part, for width of lying surface 700 mm (Art. no. 1265K)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. 1770)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. 1772)
1 side guard tiltable, chromium-plated,
completely made of steel tube, length:
700 mm
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (art. no. 1005)
1 piece of side rail,
length: 350 mm
1 attachment clamp for
side rail, suitable for pipe:
Ø 18 mm
Infusion pole, without
attachment clamp
- Side rail, length: 350 mm (art. no. 1410)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. 1430)
- Infusion pole, without attachment clamp (art. no. 1450)
1 pair of leg supports
1 pair of leg supports according to Goepel
- 1 pair of leg supports (art. no. 1510)
- 1 pair of leg supports according to Goepel (art. no. 1520)
