Table with inclinable lying surface
Model 2052-..XL/H / 2053-..XL/H

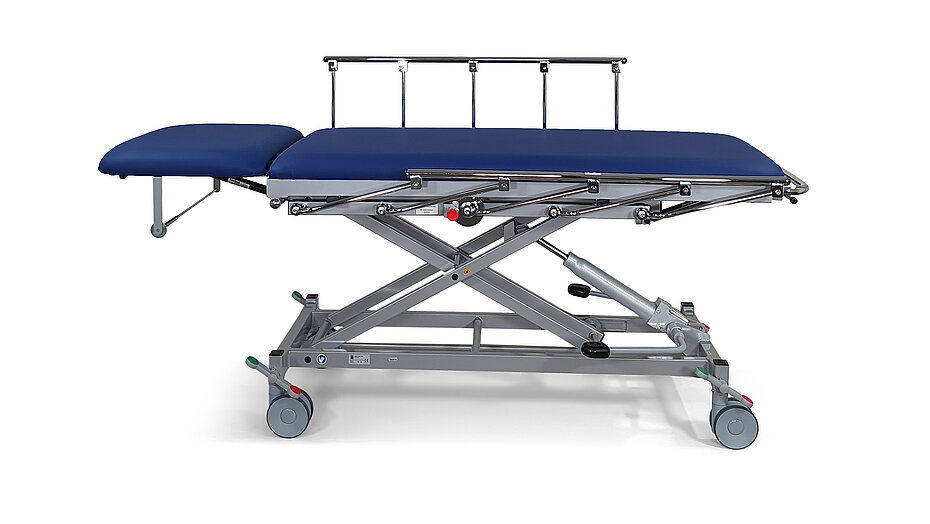

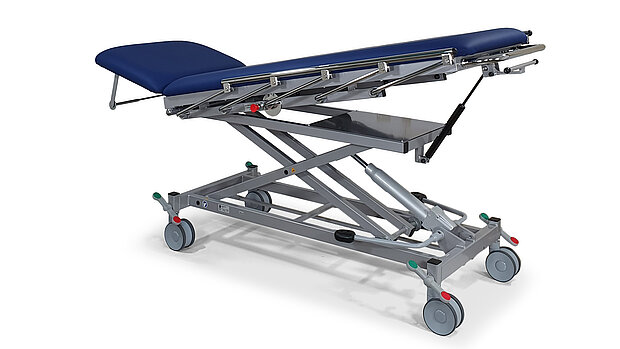

Model 2052-04XL/H (upholstery colour 64-717) with options:
Movable on comfort twin castors with central lock (1185), side guards (1080), paper roll holder (1270K)
(picture shows chromium-plated push handle)
2052-00XL/H (width: 700 mm) white powder coated (RAL 9010)
2053-00XL/H (width: 800 mm) white powder coated (RAL 9010)
2052-03XL/H (width: 700 mm) white aluminium powder coated (RAL 9006)
2053-03XL/H (width: 800 mm) white aluminium powder coated (RAL 9006)
2052-04XL/H (width: 700 mm) grey aluminium powder coated (RAL 9007)
2053-04XL/H (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Lying surface is stepless adjustable by gas spring to inclined position (Trendelenburg) till 12°
- Push handle at foot end, RAL 9006 powder coated
- Manual foot operated height adjustment by a hydraulic pump
- Pedals for foot-controlled height positioning on both sides of the table
- Table is not movable
- Dewert-hygiene-equipment
Technical data:
- Manual height adjustment: 550 - 970 mm
- Lying surface is adjustable by electric motor to inclined position (Trendelenburg) till 12°
- Length overall: 2000 mm
Length inclusive push handle: 2150 mm - Width overall:
Model 2052-..XL: 700 mm
Model 2053-..XL: 800 mm - Load capacity: 250 kg (max. weight of patient)
Hydraulic height adjustment:
- Manual foot operated height adjustment (550 mm - 970 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table

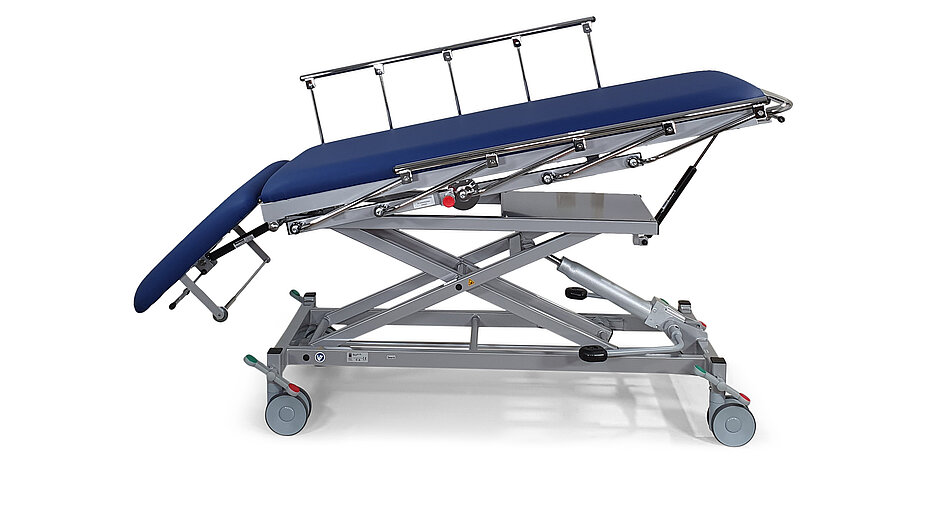

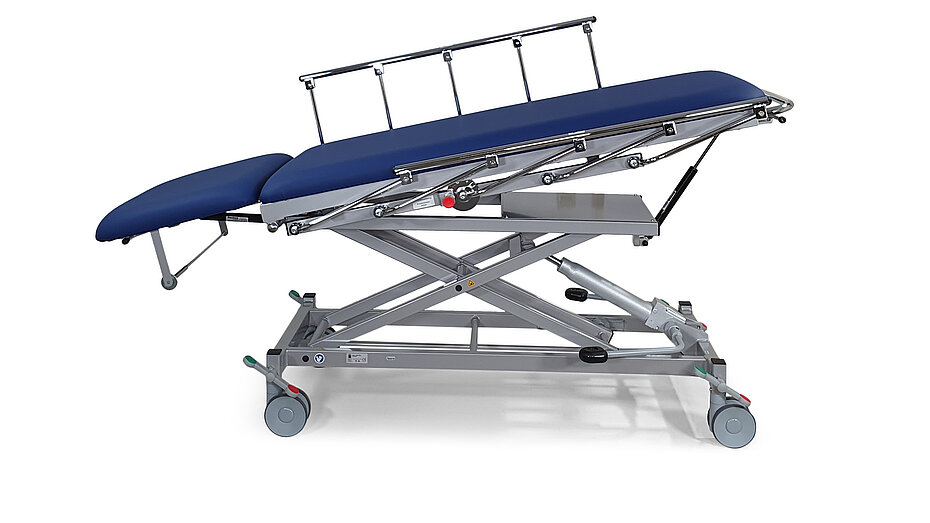

- Complete lying surface is stepless adjustable by gas spring to inclined position (Trendelenburg) till 12°
- Push handle at foot part facilitates the operation of manual inclination
Technology:
(picture shows chromium-plated push handle);
Upholstery colour: 64-717 deep sea
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable double frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene due to an open construction
- Load capacity: 250 kg
Tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
2-sectioned:
- Length head part: 500 mm

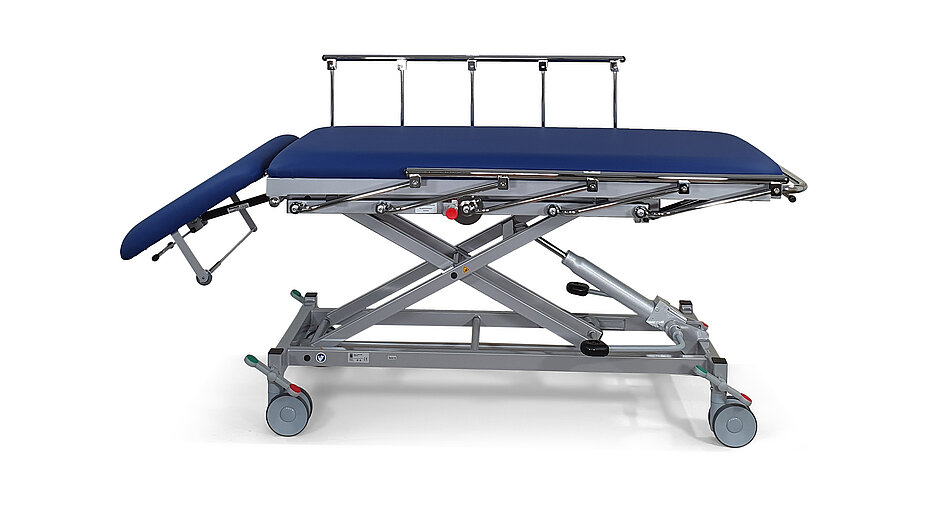

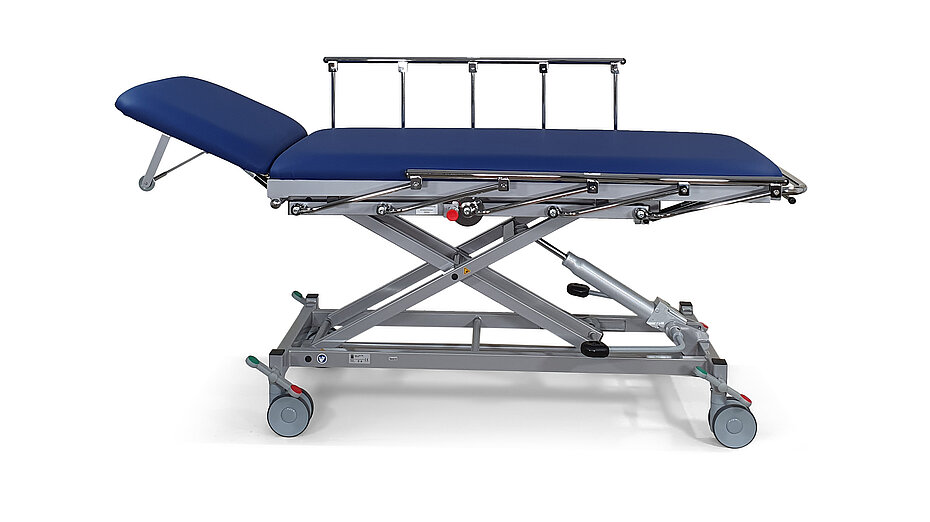

Adjustment of head part is independent of table height or position of lying surface - Head part stepless up- (+ 45°) and downwards (-35°) adjustable by gas spring
- Foot part: fixed, length foot part: 1500 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 1120N-10)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (art. no. 1180N)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 50 mm (art. no. 1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 1045N)
Nose opening, in head part
Art. no. 1620
Upholstery part to close
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder, mounted under head
part (not protruding),
for width 700 mm / 800 mm
- Paper roll holder, mounted under head part, for width 700 mm (art. no. 1270K) / (art. no. 1280K)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. 1770)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. 1772)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
1 side guard lateral lowerable (foldable), chromium-plated
- 1 side guard lateral lowerable, chromium-plated, completely made of steel tube, length: 1060 mm (art. no. 1080)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 700 mm / 800 mm
- 4 wall protection bumpers Ø 150 mm with mounting, width: 700 mm / 800 mm (Art. no. 1175) / (Art. no. 1176)
