1-sectioned table with upholstered border
Model 2114-..XL and 2115-..XL

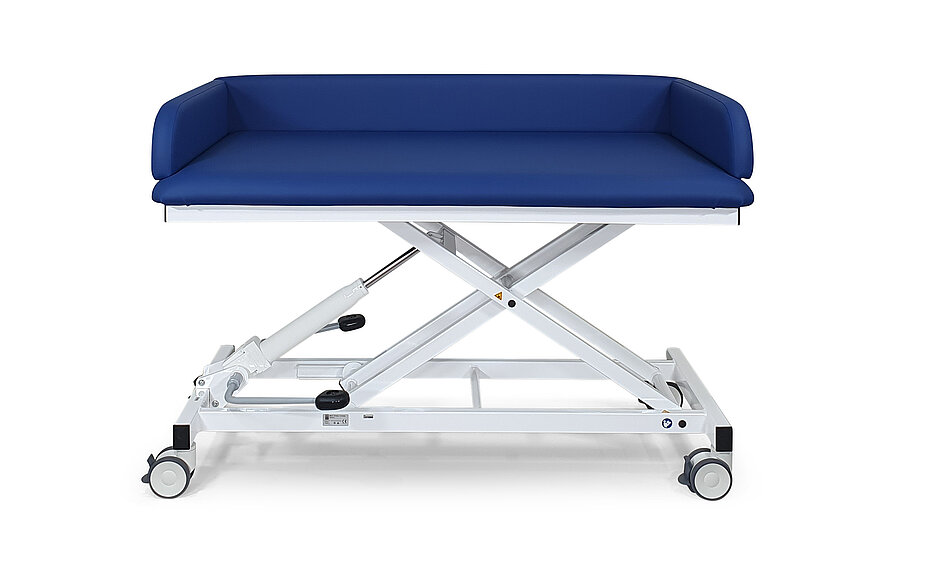

Table blue (deep sea 64-717):

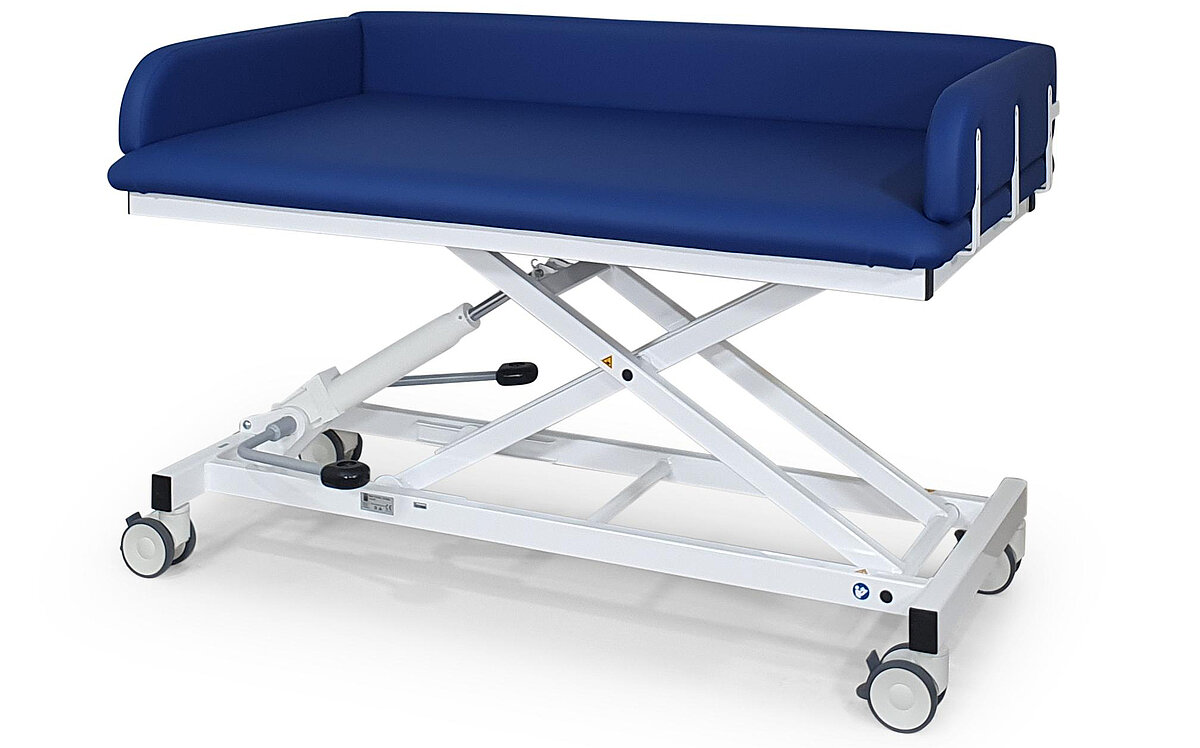

Model 2114-00XL/H with option: Movable on comfort twin castors, each with lock (1120N-10)

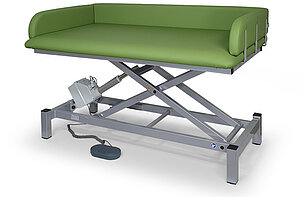

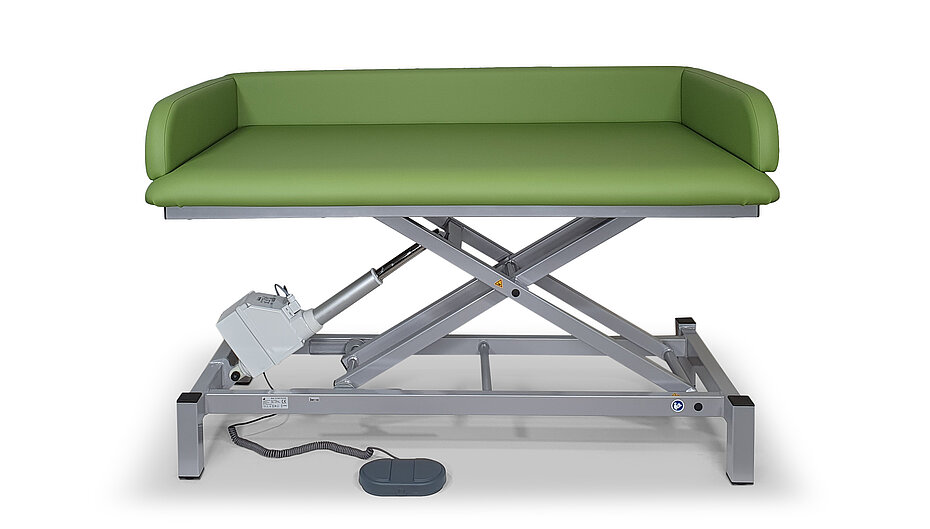

Table green (olive green 64-714): Model 2114-04XLE without hand switch, foot switch
2114-00XLE and 2114-00XL/H (width: 650 mm) white powder coated (RAL 9010)
2115-00XLE and 2115-00XL/H (width: 800 mm) white powder coated (RAL 9010)
2114-03XLE and 2114-03XL/H (width: 650 mm) white aluminium powder coated (RAL 9006)
2115-03XLE and 2115-03XL/H (width: 800 mm) white aluminium powder coated (RAL 9006)
2114-04XLE and 2114-04XL/H (width: 650 mm) grey aluminium powder coated (RAL 9007)
2115-04XLE and 2115-04XL/H (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:

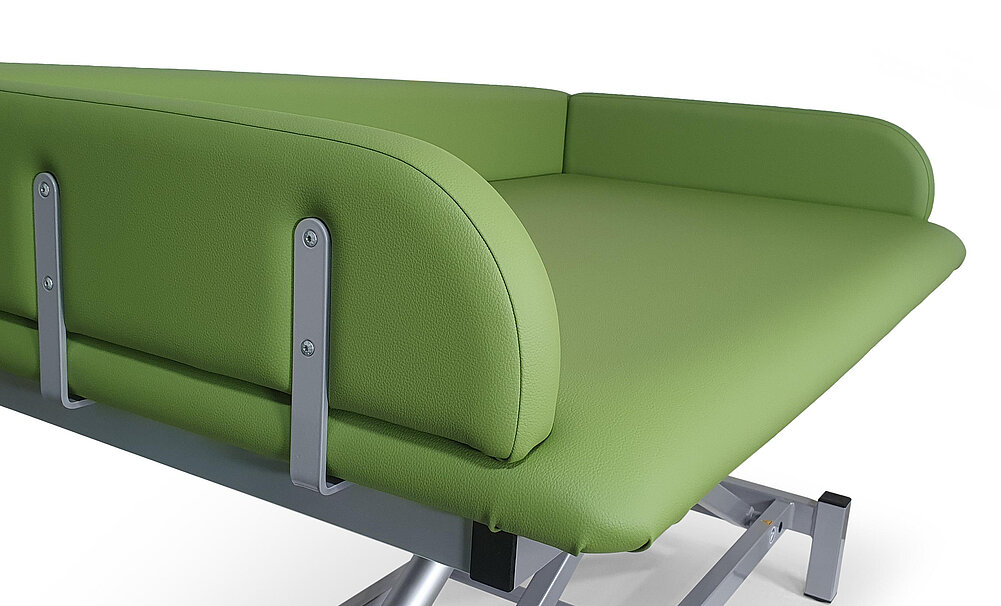

- Lying surface: 1-sectioned; with 3-sided upholstered border
- Table is not movable
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o Electronical height adjustment
(Model 2114-..XLE, 2115-..XLE): 480 mm – 920 mm in 22 sec.
o Manual hydraulic height adjustment
(Model 2114-..XL/H, 2115-..XL/H): 500 mm – 920 mm - Length overall: 1400 mm
- Width overall:
Model 2114-..XLE/ 2114-..XL/H: 650 mm
Model 2115-..XLE/ 2115-..XL/H: 800 mm - Load capacity: 250 kg (max. weight of patient)
Height adjustment optionally:
upholstery colour: 64-714 olive green
- Electronical height adjustment (480 mm – 920 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
upholstery colour: 64-717 deep sea
- Manual foot operated height adjustment (500 mm – 920 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame because of use of roller bearings
- Widely-spaced feet and a high dead weight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
1-sectioned:
- Length: 1400 mm (other lengths on request)
- 3-side upholstered border (height: 150 mm)
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 1120N-10)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (art. no. 1180N)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 50 mm (art. no. 1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 1045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
