Tables with continous frame
Model 2655-..XL and 2656-..XL

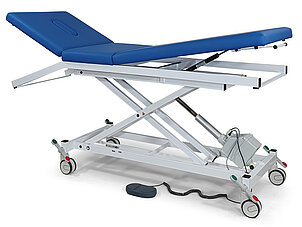

Model 2655-00XLE (upholstery colour 64-174 sky) with options:
Loss of standard mobility (1182), movable on twin castors with central lock (1180N), nose opening and upholstery part to close (1610, 1620)
2655-00XLE and 2655-00XL/H (width: 700 mm) white powder coated (RAL 9010)
2656-00XLE and 2656-00XL/H (width: 800 mm) white powder coated (RAL 9010)
2655-03XLE and 2655-03XL/H (width: 700 mm) white aluminium powder coated (RAL 9006)
2656-03XLE and 2656-03XL/H (width: 800 mm) white aluminium powder coated (RAL 9006)
2655-04XLE and 2655-04XL/H (width: 700 mm) grey aluminium powder coated (RAL 9007)
2656-04XLE and 2656-04XL/H (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Movable on 4 castors, each with total lock
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o electronical (2655-..XLE and 2656-..XLE): 540 mm to 980 mm
o manual (2655-..XL/H and 2656-..XL/H): 560 mm to 980 mm - Length of lying surface: 1.950 mm
- Width of lying surface:
Model 2655-..XLE, 2655-..XL/H: 700 mm
Model 2656-..XLE, 2656-..XL/H: 800 mm - Load capacity: 250 kg (max. weight of patient)
Height adjustment optionally:
- Electronical height adjustment (540 mm – 980 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by foot switch (option: hand switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
- Manual foot operated height adjustment (560 mm – 980 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame because of use of roller bearings
- Widely-spaced feet and a high dead weight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
3-sectioned:
- Head part stepless adjustable from -20° to +40° by gas spring, length head part: 550 mm
- Middle part: fixed, length middle part: 450 mm
- Foot part stepless adjustable +25° by gas spring, length foot part: 950 mm
- Standard-Thickness of upholstery: 8 cm
Upholstery:
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
- Loss of standard mobility (Movable on comfort twin castors Ø 100 mm, each with total lock) (art. no. 1182)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (art. no. 1180N)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 50 mm (art. no. 1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 1045N)
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
- Foot switch rail, lateral, on both sides of the table (art. no. 1950E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
- Paper roll holder, mounted at foot part (protruding: 70 mm), for width 650 mm / 800 mm (Art. no. 1270F / 1280F)
- Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
- 1 side guard lateral lowerable, chromium-plated, completely made of steel tube, length: 1060 mm (art. no. 1080)
- 1 wall protection bumper Ø 150 mm (art.-no. 1170); in case of side rail 1080: art. no. 1171, Ø 200 mm

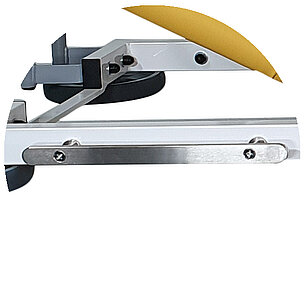

- Side rail, length: 350 mm (art. no. 1410)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. 1430)
- Arm rest for side rail, without attachment clamp (art. no. 1440)
- Infusion pole, without attachment clamp (art. no. 1450)
