Tables with continous frame
Model 2150-..XL and 2155-..XL
Model 2150-00XLE (upholstery colour: 64-711 ashgrey) with basic equipment
2150-00XLE and 2150-00XL/H (width: 650 mm) white powder coated (RAL 9010)
2155-00XLE and 2155-00XL/H (width: 800 mm) white powder coated (RAL 9010)
2150-03XLE and 2150-03XL/H (width: 650 mm) white aluminium powder coated (RAL 9006)
2155-03XLE and 2155-03XL/H (width: 800 mm) white aluminium powder coated (RAL 9006)
2150-04XLE and 2150-04XL/H (width: 650 mm) grey aluminium powder coated (RAL 9007)
2155-04XLE and 2155-04XL/H (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Movable on 4 castors, each with total lock
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o electronical (2150-..XLE and 2155-..XLE):
500 mm to 940 mm
o manual (2150-..XL/H and 2155-..XL/H):
520 mm to 940 mm - Length of lying surface: 1.950 mm
- Width of lying surface:
Model 2150-..XLE, 2150-..XL/H: 650 mm - Model 2155-..XLE, 2155-..XL/H: 800 mm
- Load capacity: 250 kg (max. weight of patient)
Height adjustment optionally:
upholstery colour: 64-711 ashgrey
- Electronical height adjustment (500 mm – 940 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by foot switch (option: hand switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of BfArM):- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
upholstery colour: 64-711 ashgrey
- Manual foot operated height adjustment (520 mm – 940 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame because of use of roller bearings
- Widely-spaced feet and a high dead weight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless upwards adjustable to +75° by gas spring, length head part: 750 mm
- Foot part: fixed, length foot part: 1200 mm
Upholstery:
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery:
Available as an option
Loss of standard mobility
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Loss of standard mobility (Movable on comfort twin castors Ø 100 mm, each with total lock) (art. no. 1182)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (art. no. 1180N)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 50 mm (art. no. 1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 1045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
- Foot switch rail, lateral, on both sides of the table (art. no. 1950E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Nose opening, in head part
Art. no. 1620
Upholstery part to close
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder,
mounted under head part
(not protruding),
for width 650 mm / 800 mm

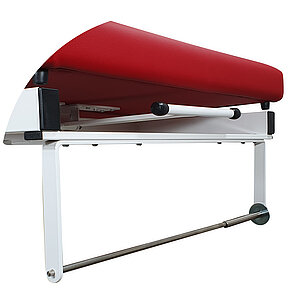

Paper roll holder, mounted at foot part
(protruding: 70 mm),
for width 650 mm / 800 mm
- Paper roll holder, mounted under head part, for width 650 mm / 800 mm (Art. no. 1265K) / (Art. no. 1280K)
- Paper roll holder, mounted at foot part (protruding: 70 mm), for width 650 mm / 800 mm (Art. no. 1270F / 1280F)
- Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
1 side guard tiltable, chromium-plated,
completely made of steel tube, length:
700 mm
1 side guard lateral lowerable (foldable), chromium-plated
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
- 1 side guard lateral lowerable, chromium-plated, completely made of steel tube, length: 1060 mm (art. no. 1080)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 700 mm / 800 mm
- 1 wall protection bumper Ø 150 mm (art.-no. 1170); in case of side rail 1080: art. no. 1171, Ø 200 mm
1 piece of side rail,
length: 350 mm
1 attachment clamp for
side rail, suitable for pipe:
Ø 18 mm
1 arm rest for side rail,
without attachment clamp
Infusion pole, without
attachment clamp
- Side rail, length: 350 mm (art. no. 1410)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. 1430)
- Arm rest for side rail, without attachment clamp (art. no. 1440)
- Infusion pole, without attachment clamp (art. no. 1450)
