Table with fixed height made of square tube
Model 30-..

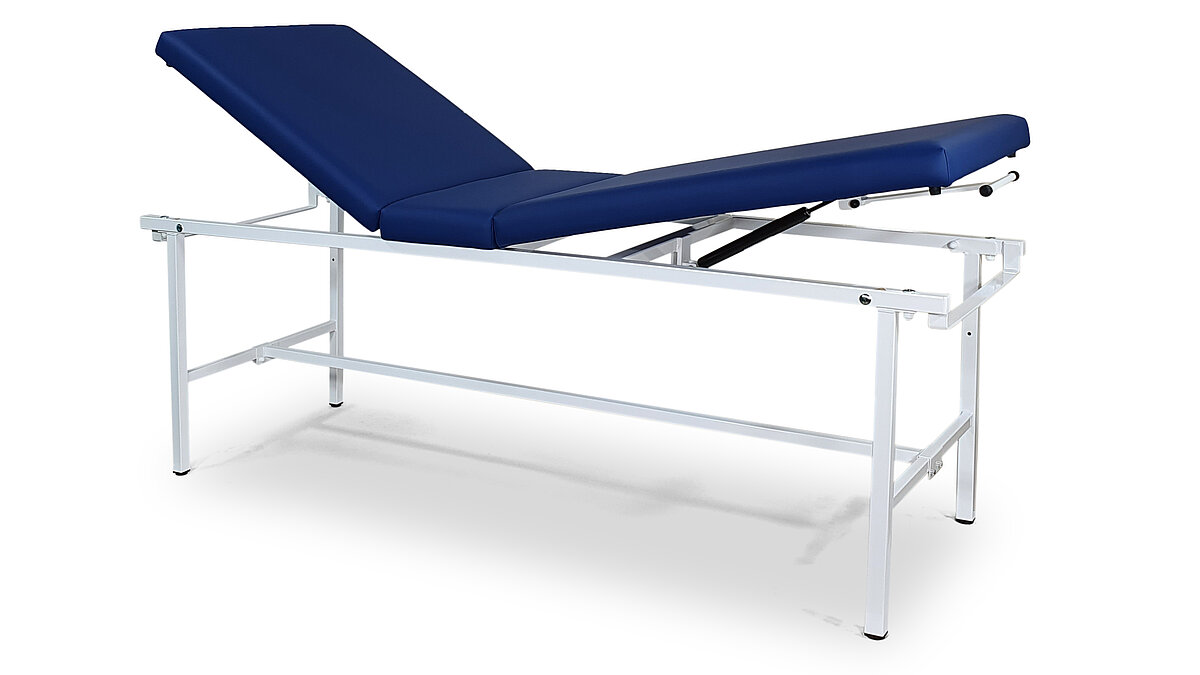

30-00 (upholstery colour 64-717 deep sea) with basic equipment
Model 30-00 white powder coated (RAL 9010)
Model 30-03 white aluminium powder coated (RAL 9006)
Model 30-04 grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Table is not movable
- Longitudinal brace for better stability
- Head part and foot part positiv adjustable, head part adjustable to sitting position
- Possibility to pin on a paper roll holder on head side and foot side
- Dewert-hygiene-equipment
Technical data:
- Length overall: 1.950 mm
- Width overall: 650 mm
- Height: 680 mm
- Load capacity: 250 kg
Technology:
Upholstery colour: 64-717 deep sea
- Frame construction made of square pipe 30 x 30 x 2 mm
- With cross brace and longitudinal brace for better stability between the feet
- Table not movable, including height adjustment screws to compensate for uneven ground
Option: Mobility - Two stable parallel mounted safety metal rachets for positive adjustment of head part
- Galvanised steel hinges connect the upholstery parts
- Pairs of feet and frame are screwed together tightly
Upholstery:
Lying surface:
3-sectioned
- Head part stepless upwards (+80°) adjustable by gas spring (sitting position), length head part: 750 mm
- Middle part: fixed, length middle part: 300 mm
- Foot part stepless upwards (+30°) adjustable by gas spring, length foot part: 900 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on 4 castors,
Ø 100 mm, each with
total lock
Movable on 4 castors,
Ø 125 mm, each with
total lock
Movable on twin castors,
Ø 100 mm with central lock
Movable on twin castors,
Ø 125 mm with central lock
- Movable on 4 castors, Ø 100 mm, each with lock (art. no. 1120-10)
- Movable on 4 castors, Ø 125 mm, each with lock (art. no. 1140-11)
- Movable on twin castors, Ø 100 mm, with central lock (art. no. 1180N)
- Movable on comfort-twin castors, Ø 125 mm, with central lock (art. no. 1185)
Head part stepless adjustable
by gas spring (0° to +55°)
Nose opening
Art. no. 1620
Upholstery part to close
- Head part stepless adjustable by gas spring (art. no. 1655-20)
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder,
for width 650 mm / 800 mm
- Paper roll holder for width 650 mm, width of paper: 540 mm (art. no. 1210)
- Paper roll holder for width 800 mm, width of paper: 690 mm (art. no. 1220)
- Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
2 side guards lateral lowerable (foldable), RAL 9006 powder coated, length: 820 mm
1 side guard tiltable, chromium-plated,
completely made of steel tube,
length: 700 mm
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
- 1 pair of side guards lateral lowerable, RAL 9006 powder coated, completely made of steel tube, length: 820 mm (art. no. 1088)
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (art. no. 1005)
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
1 piece of side rail,
length: 350 mm
Art. no. 1420
1 piece of side rail,
length: 1300 mm
1 attachment clamp for
side rail, suitable for pipe:
Ø 18 mm
1 arm rest for side rail,
without attachment clamp
Storage basket with mounting,
measures:
L. 530 x W. 370 x H. 80 mm
Infusion pole, without
attachment clamp
- Side rail, length: 350 mm (art. no. 1410)
- Side rail, length: 1300 mm (art. no. 1420)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. 1430)
- Arm rest for side rail, without attachment clamp (art. no. 1440)
- Storage basket, measures: L. 530 x W. 370 x H. 80 mm (art. no. 1850)
- Infusion pole, without attachment clamp (art. no. 1450)
