Short table with fixed height made of square tube
Model 16-.. and 17-..

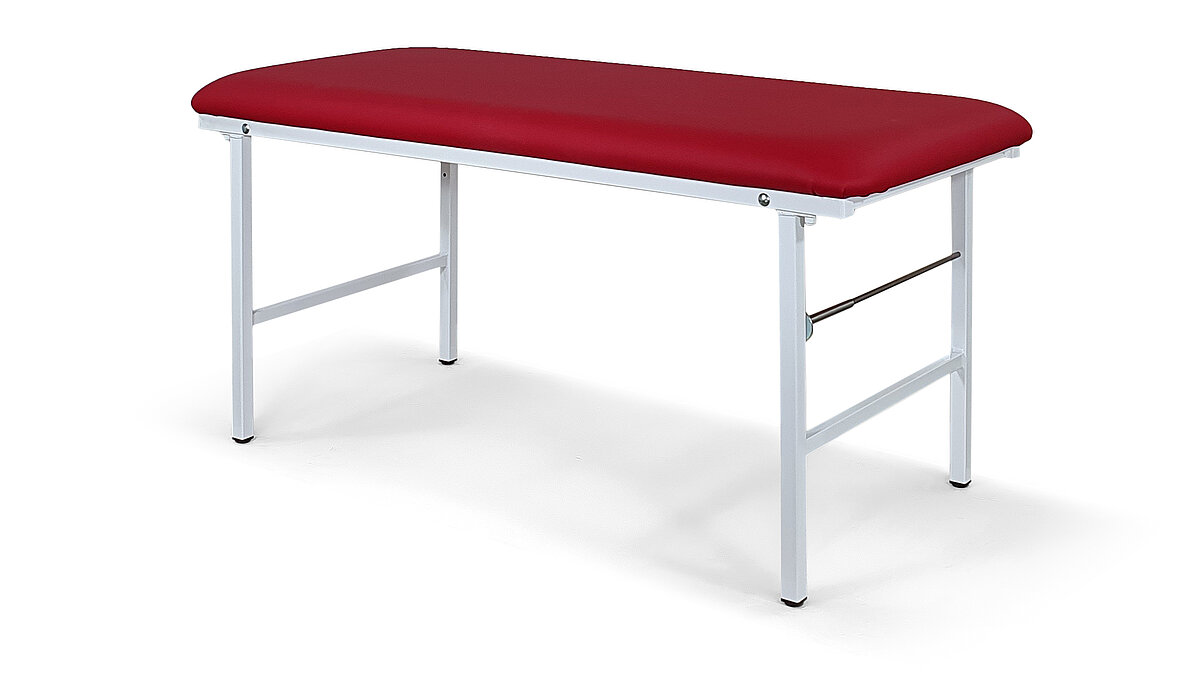

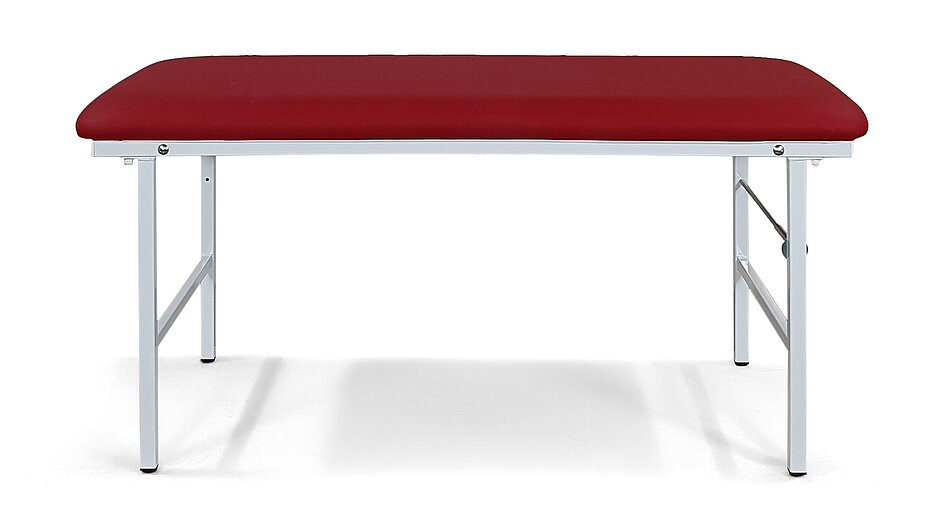

Model 16-00 (upholstery colour 64-708 cherry) with option: Paper roll holder (1210)
Model 16-00 and 17-00 frame white powder coated (RAL 9010)
Model 16-03 and 17-03 frame white aluminium powder coated (RAL 9006)
Model 16-04 and 17-04 frame grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 1-sectioned
- Table is not movable
- Possibility to pin on a paper roll holder on both sides
- Dewert-hygiene-equipment
Technical data:
- Length overall: 1450 mm
- Width overall:
Model 16-..: 650 mm
Model 17-..: 800 mm - Height: 690 mm
- Load capacity: 250 kg (max. weight of patient)
Technology:
upholstery colour: 64-708 cherry
- Frame construction made of square pipe 30 x 30 x 2 mm
- With cross brace for better stability between the feet
- Table not movable, including height adjustment screws to compensate for uneven ground
Option: Mobility (longitudinal brace necessary) - Pairs of feet and frame are screwed together tightly
Upholstery:
Lying surface:
1-sectioned:
- Length: 1450 mm (other measures available on request)
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on 4 castors,
Ø 100 mm, each with
total lock
Movable on 4 castors,
Ø 125 mm, each with
total lock
Movable on twin castors,
Ø 100 mm with central lock
(not in case of chromium-
plated frame)
Movable on twin castors,
Ø 125 mm with central lock
(not in case of chromium-plated
frame)
- Movable on 4 castors, Ø 100 mm, each with lock (art. no. 1120-10)
- Movable on 4 castors, Ø 125 mm, each with lock (art. no. 1140-11)
- Movable on twin castors, Ø 100 mm, with central lock (art. no. 1180N)
- Movable on comfort-twin castors, Ø 125 mm, with central lock (art. no. 1185)
→ Longitudinal brace necessary
Longitudinal brace for
additional stability,
necessary in case of
mobility
- Longitudinal brace for additional stability, necessary in case of mobility (art. no. 1310)
Paper roll holder,
for width 650 mm / 800 mm
- Paper roll holder for width 650 mm, width of paper: 540 mm (art. no. 1210)
- Paper roll holder for width 800 mm, width of paper: 690 mm (art. no. 1220)
- Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
